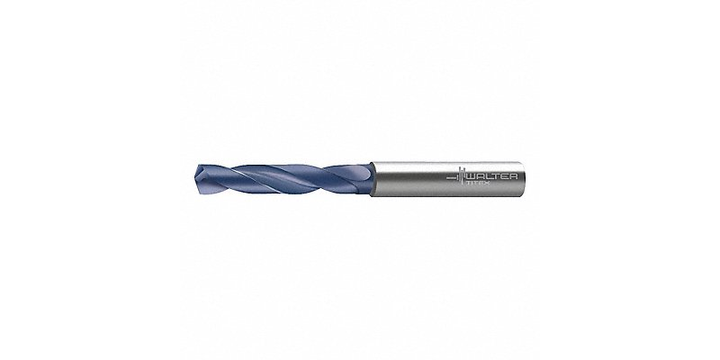

Walter Titex DC1500309922A0WJ30RE Jobber Drill 25/64 Carbide
Walter Titex DC1500309922A0WJ30RE Jobber Drill 25/64 Carbide
| Brand: | WALTER TITEX |
| Model: | DC1500309922A0WJ30RE |
Specifications
Please select at least one specification below.
Drill Bit Point Type
Self-Centering Point
Drill Bit Size
25/64"
Overall Length
3-1/2"
Standards
DIN 6537 K
Material - Machining
Carbide
Shank Dia.
10 mm
Drill Bit Point Angle
140°
Measurement System
Fractional Inch
Flute Type
Spiral
Flute Length
1-13/16"
Cutting Direction
Right Hand
Finish - Machining
TiNAl
Coolant Fed
Non-Coolant Through
This spec is not available in the specification table.
Shank Type - Machining
Straight
This spec is not available in the specification table.
Decimal Equivalent
0.3906
This spec is not available in the specification table.
Primary Material Application
Steel, Cast Iron
This spec is not available in the specification table.
Series
Perform
This spec is not available in the specification table.
Maximum Drilling Depth
1-3/8"
This spec is not available in the specification table.
Product Description
US$ 218.51
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US$ 218.51 |
Quantity:
EA
Lead time of 6 working days required.
Item will be ready to dispatch within the lead time specified.
