Simatool Bearing Puller BP 160
Simatool Bearing Puller BP 160
Product Description

simatool Bearing Puller BP 160
Removal of deep groove ball bearings from the shaft and from the housing

The ideal solution for removing deep groove ball bearings from the shaft and housing
The BP 160 Bearing Puller enables the professional removal of deep groove ball bearings. Sealed bearings can also be removed after the corresponding seal has been removed. The ball adapters of the pull rod are inserted in the bearing race and then rotated by 90 degrees to ensure a secure hold. The BP 160 Bearing Puller makes it possible to remove more than 50 different deep groove ball bearings, with an inner diameter of 30 to 160 mm.

· With the help of extensions, even hard-to-reach bearings can be easily expanded. A bearing selection table is enclosed in the tool case.

· The removal tool BP 160 is suitable for the removal of deep groove ball bearings, from the shaft and from the housing.

· Professional removal of deep groove ball bearings

· Adjacent parts do not need to be removed or dismantled

· An ideal addition to the simatool B P 61 Bearing Puller

· For deep groove ball bearings with an inner diameter of 30 to 160 mm · All components are available as spare parts

· Quick and safe selection through labelling of the bearing adapters

· Pulling off ball bearings without removing the shaft

· Mechanical pressure spindle designed for high removal forces

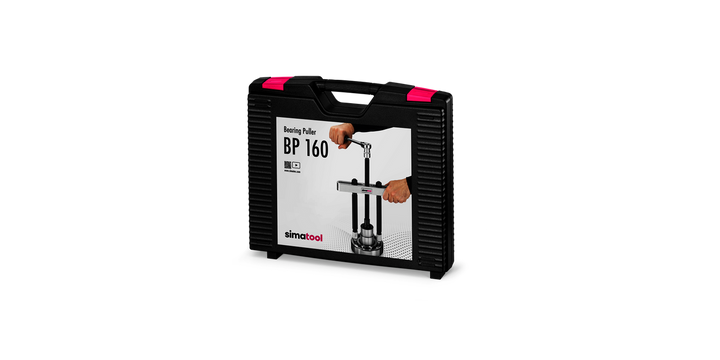

Scope of delivery
· Pulling arm support beam G 1/2
· Spindle G1/2
· 2 pull rods
· 2 extensions
· Ball adapter A7 – A12

Application areas of the BP 160
· Mechanical engineering industry
· Factory maintenance
· Electric motor maintenance
· Materials Handling
· Textile industries
· Metalworking industry
· Construction machinery
· Agricultural machinery
· Automotive industry
· Recycling industry
· Cement industry
· Cableways/mountain railways

*Lead time: 3 to 4 weeks upon order confirmation

US $ 962.18
