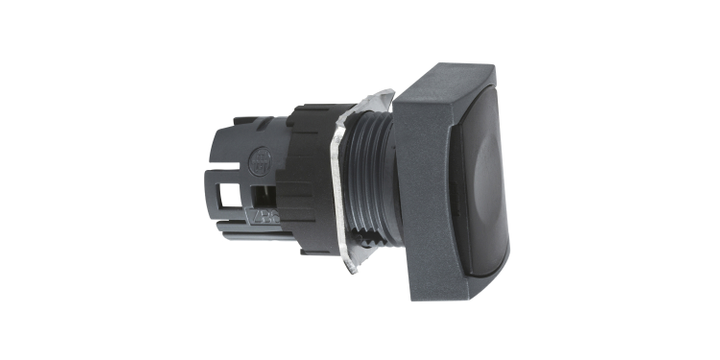

Schneider Electric ZB6DA2 Head for Non Illuminated Push Button, Harmony XB6, Black Rectangular Flush, 16mm, Integral Led, Spring Return, Unmarked
Schneider Electric ZB6DA2 Head for Non Illuminated Push Button, Harmony XB6, Black Rectangular Flush, 16mm, Integral Led, Spring Return, Unmarked
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB6DA2 |
Specifications
Please select at least one specification below.
Range of Product
Harmony XB6
Standard
IEC 60947-5-5
CSA C22.2 No 14
IEC 60947-5-1
JIS C8201-5-1
UL 508
JIS C 852
IEC 60947-1
JIS C8201-1
IP Degree of Protection
IP65 conforming to IEC 60529
Ambient Air Temperature for Operation
-25…70 °C
Vibration Resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Mounting Diameter
16 mm
Shape of Signaling Unit Head
Rectangular
Bezel Material
Plastic
Device Short Name
ZB6
This spec is not available in the specification table.
Product or Component Type
Head for non-illuminated push-button
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Certifications
CSA
CCC
GOST
UL
This spec is not available in the specification table.
Product Compatibility
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
This spec is not available in the specification table.
Type of Operator
spring return
This spec is not available in the specification table.
Operator Profile
Black flush, unmarked
This spec is not available in the specification table.
CAD Overall Width
24 mm
This spec is not available in the specification table.
CAD Overall Height
18 mm
This spec is not available in the specification table.
CAD Overall Depth
33 mm
This spec is not available in the specification table.
Product Description
US $ 15.68
Quantity:
EA
