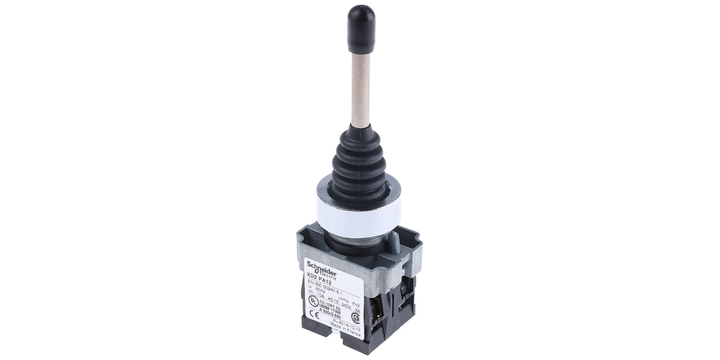

Schneider Electric XD2PA12 2-Axis Joystick Switch Lever, Slow Break, IP65 240V Ac
Schneider Electric XD2PA12 2-Axis Joystick Switch Lever, Slow Break, IP65 240V Ac
Brand: | SCHNEIDER ELECTRIC |
Model: | XD2PA12 |
Specifications
Please select at least one specification below.
Operating Temperature Range
-25 → +70°C
Contact Configuration
SPST-NO
Handle Type
Lever
IP Rating
IP65
Contact Current Rating
3 A @ 240 V ac
Contact Voltage Rating
240 V ac
Series
Harmony XD2
This spec is not available in the specification table.
Terminal Type
Screw
This spec is not available in the specification table.
Mechanical Life
1000000 Cycles
This spec is not available in the specification table.
Number of Axes
2
This spec is not available in the specification table.
Switch Technology
Slow Break
This spec is not available in the specification table.
Joystick Travel
40 mm
This spec is not available in the specification table.
Depth Behind Panel
43 mm
This spec is not available in the specification table.
Product Description
US $ 136.84
