Schneider Electric XB5AW35M5C0 XB5 Series Illuminated Push Button, 22mm Cutout, Spdt, 220 → 240V, IP66, IP67

View Brand

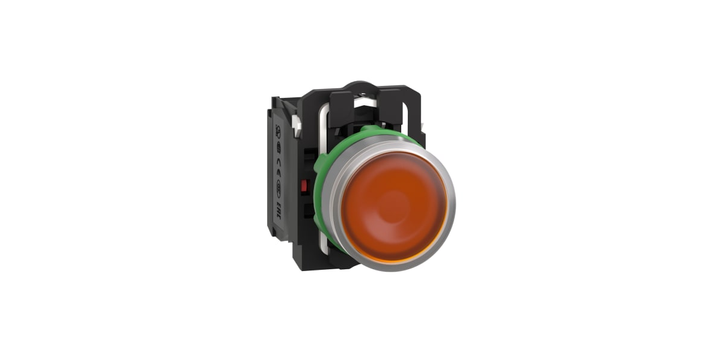

Schneider Electric XB5AW35M5C0 XB5 Series Illuminated Push Button, 22mm Cutout, Spdt, 220 → 240V, IP66, IP67

Brand:	SCHNEIDER ELECTRIC
Model:	XB5AW35M5C0

Specifications

View other Push Button Switches dimensions or variations

Illuminated

Yes

Push Button Colour

Orange

Push Button Style

Round

Panel Cut Out Diameter

22 mm

Series

XB5

Voltage Rating

220 → 240 V

Contact Configuration

SPDT

IP Rating

IP66, IP67

Product Description

US $ 63.53

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Push Button Switches

5 Items

Contacts Type And Composition

1 NO, 2 NO, 1 NC, 1 NO + 1 NC, Without contact block

Operator Profile

Red flush, unmarked, Green flush, I (white) Red projecting, O (white), Green flush, unmarked, Black flush, Flush

Standards

EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-5-1 JIS C8201-1, UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1, IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 IEC 60947-5-1 JIS C8201-1, IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-5-4 UL 508 IEC 60947-1 JIS C8201-1, IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1

Terminals Description Iso N°1

(11-12)NC, (21-22)NC, (13-14)NO (21-22)NC, (21-22)NC (13-14)NO, (13-14)NO (11-12)NC

Electrical Reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4, Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4, Λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4, Λ <= 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4
