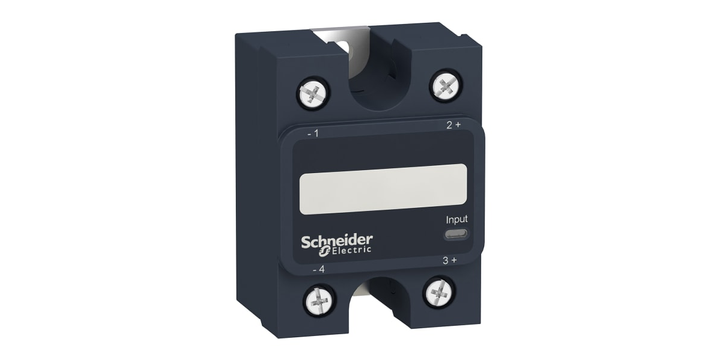

Schneider Electric SSP1D412BD Harmony Relay Series Solid State Relay, 12 a Load, Panel Mount, 150 V Dc Load, 32 V Dc Control
Schneider Electric SSP1D412BD Harmony Relay Series Solid State Relay, 12 a Load, Panel Mount, 150 V Dc Load, 32 V Dc Control
Brand: | SCHNEIDER ELECTRIC |
Model: | SSP1D412BD |
Specifications
Please select at least one specification below.
Series
Harmony Relay
Mounting Type
Panel Mount
Length
44.5 mm
Depth
34.3 mm
Height
58.9 mm
Operating Temperature Range
-40 → +80°C
Standards Met
CE, CSA, EAC, EN/IEC, REACH, UL
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+80°C
Maximum Load Current
12 A
Maximum Load Voltage
150 V dc
Minimum Load Voltage
1 V dc
Minimum Control Voltage
3.5 V dc
Maximum Control Voltage
32 V dc
Switching Type
DC
Control Voltage Range
3.5 → 32 V dc
Minimum Load Current
0 A
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Range
Harmony
This spec is not available in the specification table.
Number of Poles
1
This spec is not available in the specification table.
Dimensions
44.45 x 34.29 x 58.89mm
This spec is not available in the specification table.
Contact Configuration
SPST
This spec is not available in the specification table.
Special Features
Green LED for Input Visualization
This spec is not available in the specification table.
Terminal Type
Screw
This spec is not available in the specification table.
Capacitance
50pF
This spec is not available in the specification table.
Relay Type
Solid State Relay
This spec is not available in the specification table.
Load Voltage Range
1 → 150V dc
This spec is not available in the specification table.
Off State Leakage Current
<= 0.3 mA
This spec is not available in the specification table.
Output Device
MOSFET
This spec is not available in the specification table.
Maximum Turn On Time
0.1ms
This spec is not available in the specification table.
Product Description
US $ 59.22
