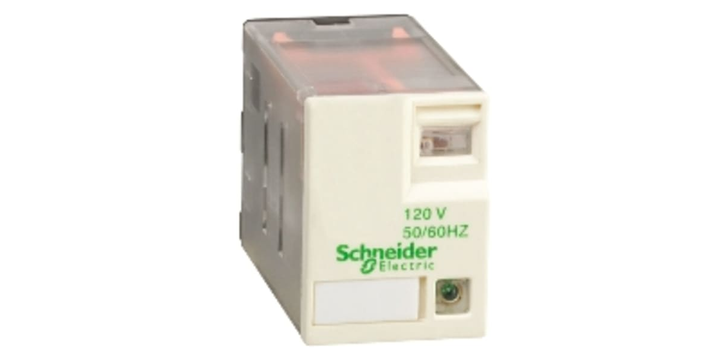

Schneider Electric RXM4AB3F7 Plug in Power Relay, 120V Ac Coil, 6A Switching Current, 4PDT
Schneider Electric RXM4AB3F7 Plug in Power Relay, 120V Ac Coil, 6A Switching Current, 4PDT
Brand: | SCHNEIDER ELECTRIC |
Model: | RXM4AB3F7 |
Specifications
Please select at least one specification below.
Length
21 mm
Mounting Type
Plug In
Depth
40 mm
Height
27 mm
Contact Material
Silver Alloy
Contact Configuration
4PDT
Coil Voltage
120V ac
Standards Met
CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+55°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V
Coil Power
1.2 W
Coil Resistance
3630 Ω
Maximum Switching Power DC
168 W
Switching Current
6 A
Maximum Switching Power AC
1.5 kVA
Number of Poles
4
This spec is not available in the specification table.
Life
100000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Series Name
Harmony Relay RXM
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
US $ 14.52
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 14.52 |
