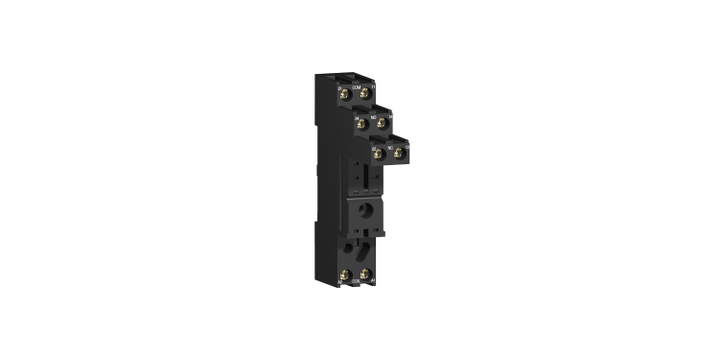

Schneider Electric RSZE1S48M Socket, for RSB1A160 RSB2A080 Relays, Harmony Electromechanical Relays, 10A, Screw Connec to Rs, Separate Contact

Schneider Electric RSZE1S48M Socket, for RSB1A160 RSB2A080 Relays, Harmony Electromechanical Relays, 10A, Screw Connec to Rs, Separate Contact

Brand:	SCHNEIDER ELECTRIC
Model:	RSZE1S48M

Specifications

View other Control Relays dimensions or variations

Standards

IEC 61984

Ip Degree Of Protection

IP20 conforming to IEC 60529

Ambient Air Temperature For Operation

-25…85 °C

Ambient Air Temperature For Storage

-40…85 °C

[Ith] Conventional Free Air Thermal Current

10 A

Product Certifications

CSA UL

[Uimp] Rated Impulse Withstand Voltage

3.6 kV

Connections - Terminals

Screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Tightening Torque

< 0.8 N.m for M3 screw(s)

Range Of Product

Harmony Electromechanical Relays

Overvoltage Category

III

Pollution Degree

3

Fixing Mode

By screw (panel) Clip-on (35 mm symmetrical DIN rail)

Contacts Type And Composition

2 C/O

Product Compatibility

Plug-in relay RSB with 1 C/O contact at 16 A Plug-in relay RSB with 2 C/O contact at 8 A

Product Description

US $ 129.65

Quantity:

EA

MOQ of 10 EA

Bundle of 1 EA

This item is sold by

Schneider Electric

Shop by Specification Table

You can find items with similar specifications from the table below.

control-relays-img

Utilisation Category

DC-13 AC-15 AC-14, AC-14 AC-15 DC-13, AC-14 DC-13 AC-15, AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1, AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 DC-14 conforming to IEC 60947-5-1

EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1, EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1, IEC 61984, IEC 60255-6, IEC 60255-1

[Ui] Rated Insulation Voltage

690 V conforming to IEC 60947 690 V conforming to VDE 0110 group C 690 V conforming to BS 5424 690 V conforming to UL 508 690 V conforming to CSA C22.2 No 14, 690 V conforming to IEC 60947 750 V conforming to VDE 0110 group C 690 V conforming to BS 5424 600 V conforming to CSA C22.2 No 14, 400 V, 250 V conforming to IEC 60664-1, 250 V conforming to IEC 60664-1 400 V conforming to IEC 60664-1

Ip Degree Of Protection

IP20 (terminals) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529, IP20 conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 IP30 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529

Ambient Air Temperature For Operation

-40…60 °C 60…70 °C with derating, -20…60 °C, -20…50 °C at 60 Hz -20…60 °C at 50 Hz AC/DC, -25…85 °C, -20…50 °C at 60 Hz -20…60 °C at 50 Hz

Mechanical Durability

20 Mcycles, 30 Mcycles, 10 Mcycles, 10000000 cycles, 30000000 cycles

Ambient Air Temperature For Storage

-50…80 °C, -60…80 °C, -50…70 °C, -40…85 °C, -40…70 °C
