Schneider Electric RSLZVA1 Socket Equipped With Led and Protection Circuit, Harmony Electromechanical Relays, for RSL1 Relays, Srew Connec to R, 12 to 24V Ac Dc

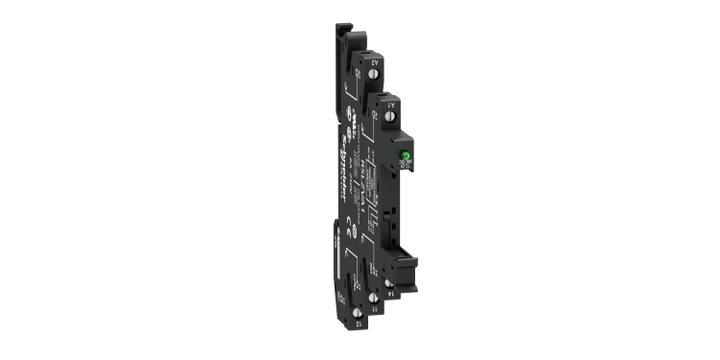

Schneider Electric RSLZVA1 Socket Equipped With Led and Protection Circuit, Harmony Electromechanical Relays, for RSL1 Relays, Srew Connec to R, 12 to 24V Ac Dc

Brand:	SCHNEIDER ELECTRIC
Model:	RSLZVA1

Specifications

View other Socket Relay dimensions or variations

Standards

IEC 61984 UL 508

[Uimp] Rated Impulse Withstand Voltage

3.6 kV

Connections - Terminals

Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end

Ip Degree Of Protection

IP20 conforming to IEC 60529

Pollution Degree

3

Ambient Air Temperature For Operation

-40…70 °C

Tightening Torque

< 0.4 N.m for M2.5 screw(s)

[Ue] Rated Operational Voltage

< 300 V AC

[Ith] Conventional Free Air Thermal Current

6 A

Contacts Type And Composition

1 C/O

Range of product

Harmony Electromechanical Relays

Compatibility Code

RSLZ

Overvoltage Category

III

Ambient Air Temperature For Storage

-40…85 °C

Fixing Mode

Plastic compression spring (35 mm symmetrical DIN rail)

Product Certifications

CSA GOST

Product Compatibility

Plug-in relay RSL with 1 C/O contact at 12 V DC Plug-in relay RSL with 1 C/O contact at 24 V DC

Group Of Product

RSL_CON_12-24

Cad Overall Width

6.2 mm

Cad Overall Height

78.6 mm

Cad Overall Depth

95 mm

Shape Of Pin

Flat

Rated Operational Voltage Limits

11.4...14.4 V 21.6...28.8 V

Contact Terminal Arrangement

Separate

Switching Voltage

12 V AC/DC 24 V AC/DC

Product Description

US $ 214.19

Quantity:

EA

MOQ of 10 EA

Bundle of 1 EA

This item is sold by

Schneider Electric

Shop by Specification Table

You can find items with similar specifications from the table below.

socket-relay-img

IEC 61984 UL 508, IEC 61984 CSA C22.2 No 14 UL 508, UL 508 CSA C22.2 No 14 IEC 61984, IEC 61984, CSA C22.2 No 14 IEC 61984 UL 508

Connections - Terminals

- screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16 - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14 - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 20...AWG 14) solid without cable end, Screw clamp terminals, 1 x 0.25...1 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end

Tightening Torque

< 0.4 N.m for M2.5 screw(s), < 1 N.m for M3.5 screw(s) < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s), < 1 N.m for M3 screw(s), < 0.8 N.m for M3 screw(s)

[Ue] Rated Operational Voltage

<250 V, 250 V, 5 → 24 V dc, 230 V ac/dc, 250 V, 300 V

[Ith] Conventional Free Air Thermal Current

6 A, 10 A, 12 A, 7 A, 16 A
