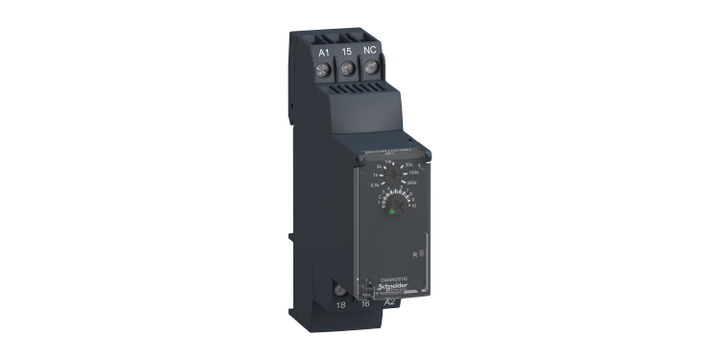

Schneider Electric RE22R1QCMU Single Function Relay, Harmony Timer Relays, 8A, 1 Co, 0.05s…300s, Star Delta, 24V Dc or 24...240V Ac Dc
Schneider Electric RE22R1QCMU Single Function Relay, Harmony Timer Relays, 8A, 1 Co, 0.05s…300s, Star Delta, 24V Dc or 24...240V Ac Dc
Brand: | SCHNEIDER ELECTRIC |
Model: | RE22R1QCMU |
Specifications
Please select at least one specification below.
Device Short Name
RE22
Product Or Component Type
Single function relay
Time Delay Range
10...100 s
3...30 s
0.1...1 s
0.3...3 s
0.05...0.5 s
1...10 s
30...300 s
Standards
UL 508
IEC 61812-1
Minimum Switching Current
10 mA at 5 V DC
Product Certifications
GL
CE
CCC
EAC
UL
CSA
RCM
Vibration Resistance
20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6
Immunity To Microbreaks
10 ms
[Us] Rated Supply Voltage
24 V DC
24...240 V AC 50/60 Hz
Control Type
Rotary knob
Diagnostic button
This spec is not available in the specification table.
Range Of Product
Harmony Timer Relays
This spec is not available in the specification table.
Mounting Support
35 mm DIN rail conforming to IEC 60715
This spec is not available in the specification table.
Housing Material
Self-extinguishing
This spec is not available in the specification table.
Connections - Terminals
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
This spec is not available in the specification table.
Overvoltage Category
III conforming to IEC 60664-1
This spec is not available in the specification table.
Ip Degree Of Protection
IP40 housing: conforming to IEC 60529
IP50 front face: conforming to IEC 60529
IP20 terminals: conforming to IEC 60529
This spec is not available in the specification table.
Pollution Degree
3 conforming to IEC 60664-1
This spec is not available in the specification table.
Relative Humidity
95 % at 25…55 °C
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-20…60 °C
This spec is not available in the specification table.
Mechanical Durability
10000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
100000 cycles, 8 A at 250 V, AC-1
100000 cycles, 2 A at 24 V, DC-1
This spec is not available in the specification table.
Tightening Torque
0.6…1 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Electromagnetic Compatibility
Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4
Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5
Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5
Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3
Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6
Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4
Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11
Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
This spec is not available in the specification table.
Insulation Resistance
100 MOhm at 500 V DC conforming to IEC 60664-1
This spec is not available in the specification table.
Contacts Type And Composition
1 C/O timed contact, cadmium free
This spec is not available in the specification table.
Shock Resistance
15 gn not operating for 11 ms conforming to IEC 60068-2-27
5 gn in operation for 11 ms conforming to IEC 60068-2-27
This spec is not available in the specification table.
Dielectric Strength
2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
This spec is not available in the specification table.
Directives
2004/108/EC - electromagnetic compatibility
2006/95/EC - low voltage directive
This spec is not available in the specification table.
Mounting Position
Any position
This spec is not available in the specification table.
Supply Frequency
50...60 Hz +/- 5 %
This spec is not available in the specification table.
Power Consumption In Va
35 VA at 240 V AC
This spec is not available in the specification table.
Maximum Switching Current
8 A
This spec is not available in the specification table.
Power Consumption In W
0.6 W at 24 V DC
This spec is not available in the specification table.
Status Led
LED backlight green (steady) for dial pointer indication
LED yellow (steady) for output relay energised
LED yellow (fast flashing) for timing in progress and output relay de-energised
LED yellow (slow flashing) for timing in progress and output relay energised
This spec is not available in the specification table.
Maximum Switching Voltage
250 V AC
This spec is not available in the specification table.
Safety Reliability Data
MTTFd = 285.3 years
B10d = 270000
This spec is not available in the specification table.
Discrete Output Type
Relay
This spec is not available in the specification table.
Nominal Output Current
8 A
This spec is not available in the specification table.
Time Delay Type
Star-delta
This spec is not available in the specification table.
Release Input Voltage
<= 2.4 V
This spec is not available in the specification table.
Voltage Range
0.85...1.1 Us
This spec is not available in the specification table.
Repeat Accuracy
+/- 0.5 % conforming to IEC 61812-1
This spec is not available in the specification table.
Temperature Drift
+/- 0.05 %/°C
This spec is not available in the specification table.
Voltage Drift
+/- 0.2 %/V
This spec is not available in the specification table.
Setting Accuracy Of Time Delay
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
This spec is not available in the specification table.
Recovery Time
120 ms on de-energisation
This spec is not available in the specification table.
Switching Capacity In Va
2000 VA
This spec is not available in the specification table.
Rated Impulse Withstand Voltage
5 kV for 1.2…50 µs conforming to IEC 60664-1
This spec is not available in the specification table.
Power On Delay
100 ms
This spec is not available in the specification table.
Creepage Distance
4 kV/3 conforming to IEC 60664-1
This spec is not available in the specification table.
Product Description
US $ 58.43
