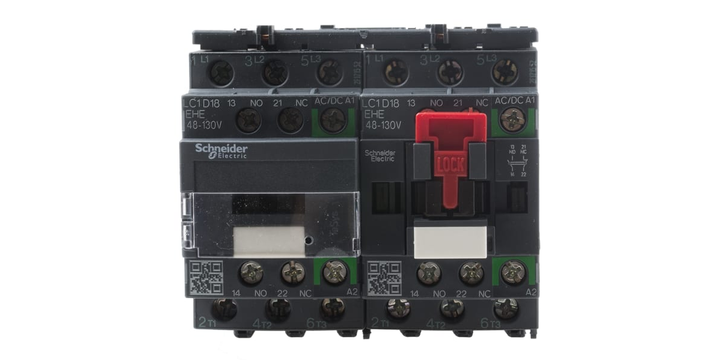

Schneider Electric LC2D18EHE LC2D Series Reversing Contactor, 110 V ac/dc Coil, 3-Pole, 18 A, 7.5 Kw, 3NO, 690 V Ac
Schneider Electric LC2D18EHE LC2D Series Reversing Contactor, 110 V ac/dc Coil, 3-Pole, 18 A, 7.5 Kw, 3NO, 690 V Ac
| Brand: | SCHNEIDER ELECTRIC |
| Model: | LC2D18EHE |
Specifications
Please select at least one specification below.
Device Short Name
LC2D
Range Of Product
TeSys D
Depth
77 mm
Pole Contact Composition
3 NO
Poles Description
3P
Contactor Application
Reversing
Contactor Coil Voltage
110 V ac/dc
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+60°C
Terminal Type
Screw
Power Rating
7.5 kW
Contact Current Rating
18 A
Contact Voltage Rating
690 V ac
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Pole and Throw Configuration
3PST
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Number Of Auxiliary Contacts
2
This spec is not available in the specification table.
Product Description
US $ 519.73
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 519.73 |
