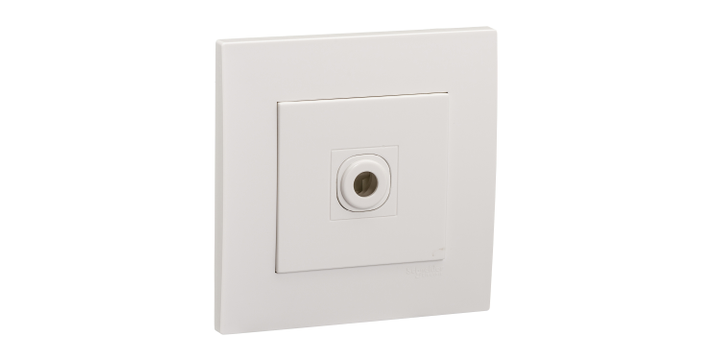

Schneider Electric KB31TB_WE Connection Unit, Vivace, 25A, 250V, White
Schneider Electric KB31TB_WE Connection Unit, Vivace, 25A, 250V, White
Specifications
infotip-icon
View other Switch Socket Outlet dimensions or variations
Please select at least one specification below.
Ip Degree Of Protection
IP20
Number Of Gangs
1 gang
Colour Tint
White
Rated Current
25 A at 250 V AC, resistive
Material
Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
Standards
BS 5733
Relative Humidity
0…95 %
Ambient Air Temperature For Operation
-5…40 °C
Ambient Air Temperature For Storage
0…60 °C
Device Short Name
KB31
This spec is not available in the specification table.
Product Or Component Type
Connection unit
This spec is not available in the specification table.
Range
Vivace
This spec is not available in the specification table.
Device Application
Power supply
This spec is not available in the specification table.
Device Presentation
Complete mechanism
This spec is not available in the specification table.
Network Frequency
50 Hz
This spec is not available in the specification table.
Connections - Terminals
Pillar terminal
This spec is not available in the specification table.
Operating Altitude
0...2000 m
This spec is not available in the specification table.
Tightening Torque
0.4 N.m
This spec is not available in the specification table.
Device Mounting
Flush
This spec is not available in the specification table.
Projecting Depth
8 mm
This spec is not available in the specification table.
Fixing Mode
By screw M3.5
This spec is not available in the specification table.
Fixing Center
60.3 mm
This spec is not available in the specification table.
Embedding Depth
30 mm
This spec is not available in the specification table.
Contacts Material
Brass and phosphor bronze
This spec is not available in the specification table.
Terminal Identifier
L1 L2 N1 N2 E
This spec is not available in the specification table.
Environmental Characteristic
Indoor use
This spec is not available in the specification table.
Main Colour Tint
White
This spec is not available in the specification table.
Clamping Connection Capacity
4 mm² 2.5 mm²
This spec is not available in the specification table.
Mounting Support
Wall mounted
This spec is not available in the specification table.
