Schneider Electric GC6340M5 Modular Contactor, Tesys Gc, AC-7a, 63A, 4NO, 220 to 240VAC 50Hz Coil

View Brand

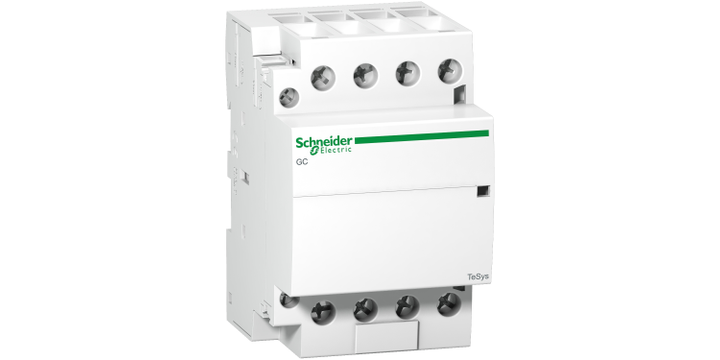

Schneider Electric GC6340M5 Modular Contactor, Tesys Gc, AC-7a, 63A, 4NO, 220 to 240VAC 50Hz Coil

Brand:	SCHNEIDER ELECTRIC
Model:	GC6340M5

Specifications

View other Contactors dimensions or variations

Device Short Name

GC63

Depth

62.5 mm

Poles Description

Contactor Application

Heating Lighting Motor control

Colour

White

Control Type

Remote control

Product Name

TeSys GC

Mounting Mode

Clip-on

Standards

IEC 61095 IEC 60947-5

[Ui] Rated Insulation Voltage

500 V conforming to IEC 61095 500 V conforming to VDE 0110

[Uimp] Rated Impulse Withstand Voltage

4 kV

Mounting Support

DIN rail

Connections - Terminals

Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 25 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 16 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 16 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 4 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 25 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 6 mm²solid without cable end

Height

85 mm

Ip Degree Of Protection

IP40 conforming to VDE 0106 (in enclosure) IP20 conforming to VDE 0106

Ambient Air Temperature For Operation

-5…50 °C

Mechanical Durability

1000000 cycles

Ambient Air Temperature For Storage

-40…70 °C

Electrical Durability

AC-7A: 100000 cycles AC-7B: 100000 cycles

Operating Altitude

<= 3000 m

Tightening Torque

Control circuit: 0.8 N.m - on screw clamp terminals Power circuit: 2 N.m - on screw clamp terminals

[Ue] Rated Operational Voltage

<= 250 V AC

[Ie] Rated Operational Current

63 A AC-7A 25 A AC-7B

[Uc] Control Circuit Voltage

220...240 V AC 50 Hz

Inrush power in VA

53 VA 50 Hz (at 20 °C)

Hold-in power consumption in VA

6.5 VA 50 Hz (at 20 °C)

Heat dissipation

2.1 W at 50/60 Hz

Range

TeSys

Utilisation Category

AC-7A AC-7B

[Ith] Conventional Free Air Thermal Current

63 A (at 50 °C) for power circuit

Irms Rated Making Capacity

200 A at 400 V AC for power circuit conforming to IEC 61095

Rated Breaking Capacity

200 A at 400 V for power circuit conforming to IEC 61095

[Icw] Rated Short-Time Withstand Current

504 A 40 °C - 10 s for power circuit 157 A 40 °C - 30 s for power circuit

Associated Fuse Rating

63 A gL at <= 440 V for power circuit

Average Impedance

2 mOhm - Ith 63 A 50 Hz for power circuit

Power Dissipation Per Pole

8 W

Control Circuit Type

AC at 50 Hz

Control Circuit Voltage Limits

Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C) Operational: 0.85...1.1 Uc at 50 Hz (at <50 °C)

Operating Time

10...25 ms opening 10...30 ms closing

Auxiliary Contact Composition

300 cyc/h 50 °C

Protective Treatment

Mechanical Robustness

Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 3 Gn, 5...300 Hz

Operating Position

30°/vertical

Power Pole Contact Composition

4 NO

Total Number Of 18 Mm Modules

Product Description

US $ 438.48
