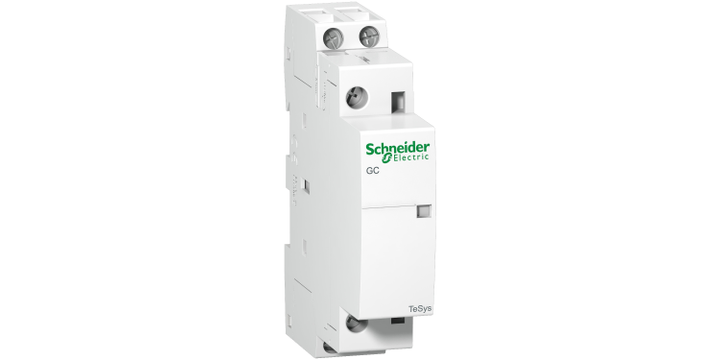

Schneider Electric GC2520M5 Modular Contactor, Tesys Gc, AC-7a, 25A, 2NO, 220 to 240VAC 50Hz Coil
Schneider Electric GC2520M5 Modular Contactor, Tesys Gc, AC-7a, 25A, 2NO, 220 to 240VAC 50Hz Coil
Brand: | SCHNEIDER ELECTRIC |
Model: | GC2520M5 |
Specifications
Please select at least one specification below.
Device Short Name
GC25
Depth
62.5 mm
Poles Description
2P
Contactor Application
Motor control
Heating
Lighting
Colour
White
This spec is not available in the specification table.
Control Type
Remote control
This spec is not available in the specification table.
Product Name
TeSys GC
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Standards
IEC 61095
IEC 60947-5
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
500 V conforming to IEC 61095
500 V conforming to VDE 0110
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV
This spec is not available in the specification table.
Mounting Support
DIN rail
This spec is not available in the specification table.
Connections - Terminals
Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable end
Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 4 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 6 mm²solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 4 mm²solid without cable end
This spec is not available in the specification table.
Height
81 mm
This spec is not available in the specification table.
Ip Degree Of Protection
IP40 conforming to VDE 0106 (in enclosure)
IP20 conforming to VDE 0106
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-5…50 °C
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
AC-7A: 100000 cycles
AC-7B: 100000 cycles
This spec is not available in the specification table.
Operating Altitude
<= 3000 m
This spec is not available in the specification table.
Tightening Torque
Control circuit: 0.8 N.m - on screw clamp terminals
Power circuit: 0.8 N.m - on screw clamp terminals
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
<= 250 V AC
This spec is not available in the specification table.
[Ie] Rated Operational Current
25 A AC-7A
8.5 A AC-7B
This spec is not available in the specification table.
[Uc] Control Circuit Voltage
220...240 V AC 50 Hz
This spec is not available in the specification table.
Inrush power in VA
15 VA 50 Hz (at 20 °C)
This spec is not available in the specification table.
Hold-in power consumption in VA
3.8 VA 50 Hz (at 20 °C)
This spec is not available in the specification table.
Heat dissipation
1.3 W at 50/60 Hz
This spec is not available in the specification table.
Range
TeSys
This spec is not available in the specification table.
Utilisation Category
AC-7B
AC-7A
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
25 A (at 50 °C) for power circuit
This spec is not available in the specification table.
Irms Rated Making Capacity
68 A at 400 V AC for power circuit conforming to IEC 61095
This spec is not available in the specification table.
Rated Breaking Capacity
68 A at 400 V for power circuit conforming to IEC 61095
This spec is not available in the specification table.
[Icw] Rated Short-Time Withstand Current
200 A 40 °C - 10 s for power circuit
62 A 40 °C - 30 s for power circuit
This spec is not available in the specification table.
Associated Fuse Rating
25 A gL at <= 440 V for power circuit
This spec is not available in the specification table.
Average Impedance
2.5 mOhm - Ith 25 A 50 Hz for power circuit
This spec is not available in the specification table.
Power Dissipation Per Pole
1.6 W
This spec is not available in the specification table.
Control Circuit Type
AC at 50 Hz
This spec is not available in the specification table.
Control Circuit Voltage Limits
Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C)
Operational: 0.85...1.1 Uc at 50 Hz (at <50 °C)
This spec is not available in the specification table.
Operating Time
10...25 ms opening
10...30 ms closing
This spec is not available in the specification table.
Auxiliary Contact Composition
300 cyc/h 50 °C
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
Mechanical Robustness
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
This spec is not available in the specification table.
Operating Position
30°/vertical
This spec is not available in the specification table.
Power Pole Contact Composition
2 NO
This spec is not available in the specification table.
Total Number Of 18 Mm Modules
1
This spec is not available in the specification table.
Product Description
