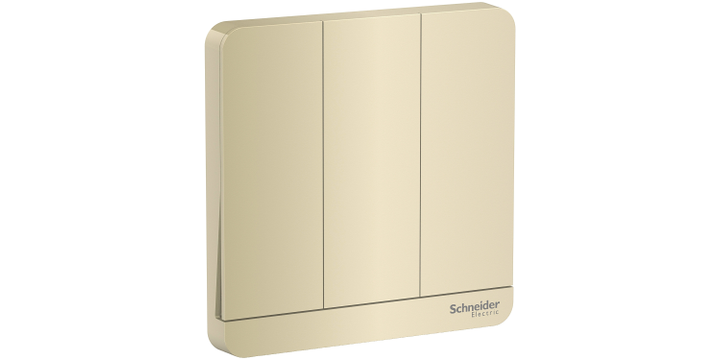

Schneider Electric E8333L2_WG_G2 Avataron, 3 Switches, 16AX, 250V, 2 Way,wine Gold
Schneider Electric E8333L2_WG_G2 Avataron, 3 Switches, 16AX, 250V, 2 Way,wine Gold
Brand: | SCHNEIDER ELECTRIC |
Model: | E8333L2_WG_G2 |
Specifications
Please select at least one specification below.
Width
86 mm
Material
Polycarbonate: grid plate
Polycarbonate: base
Polycarbonate: dolly
Polycarbonate: frame
Polycarbonate + GF 20 %: actuator
Depth
34.2 mm
Device application
Control
Standards
BS EN 60669-1
MS IEC 60669-1
IEC 60669-1
SS 227-1
Connections -Terminals
Brass terminal
Height
86 mm
IP degree of protection
IP20
Relative humidity
0…95 %
Number of gangs
3 gangs
Colour tint
Wine gold
Device mounting
Surface
Flush
Switch function
1-pole 2-way
Rated Current
16 AX at 250 V AC 50/60 Hz
Clamping connection capacity
3 x 2.5 mm² for solid cable(s)
3 x 2.5 mm² for stranded cable(s)
4 x 1.5 mm² for solid cable(s)
4 x 1.5 mm² for stranded cable(s)
Environmental characteristic
UV resistant
Load type
Incandescent lamp
Resistive
Inductive
Fluorescent lamp
Product or component type
Switch
This spec is not available in the specification table.
Maximum ambient air temperature for operation
45 °C
This spec is not available in the specification table.
Operating altitude
2000 m
This spec is not available in the specification table.
Product Description
US $ 30.15
Quantity:
EA
This item is sold by0
Schneider Electric
