Schneider Electric DZ5CA102 Cable End, Linergy Tr Cable Ends, Single Conductor, Brown, 10mm², Medium Size, 10 Sets of 100
Schneider Electric DZ5CA102 Cable End, Linergy Tr Cable Ends, Single Conductor, Brown, 10mm², Medium Size, 10 Sets of 100
Technical Data Sheets
Product Description

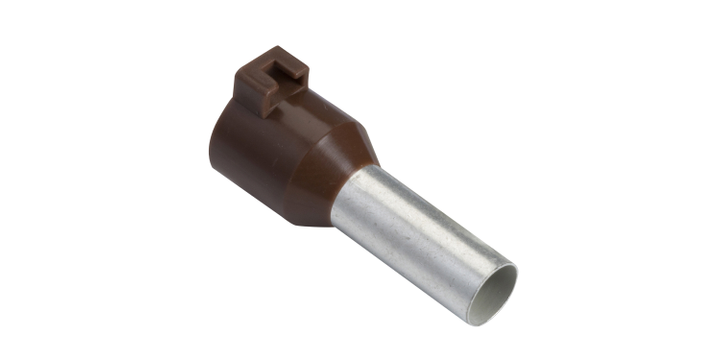

Schneider Electric DZ5CA102 Cable End, Linergy Tr Cable Ends, Single Conductor, Brown, 10mm², Medium Size, 10 Sets of 100

Linergy cable end insulated for clip-in marker. It applied to single conductor with 10 mm² cable cross section. It has brown surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).

  • Range of Product: Linergy
  • Product or Component Type: Cable end
  • Cable End Size: Medium
  • Standards: NF C 63-023
  • Type of Packing: Bag
  • Quantity per Set: Set of 100
  • Cable Cross Section: 10 mm²
  • Cable End Type: Single conductor
  • Additional Information: For additional marker tag holder
  • Colour: Brown
  • Bezel Material: Halogen-free plastic
  • Tube Material: Copper conforming to ISO 1337
  • Number of Cables: 1
  • AWG Gauge: AWG 8
  • Bezel Size: Ø 8.4 mm
  • Tube Diameter: 4.9 mm
  • Length: 22 mm
  • Tube Length: 12 mm
  • CAD Overall Depth: 22 mm
  • Net Weight: 0.057 kg
  • Ambient Air Temperature for Operation: -20…105 °C
