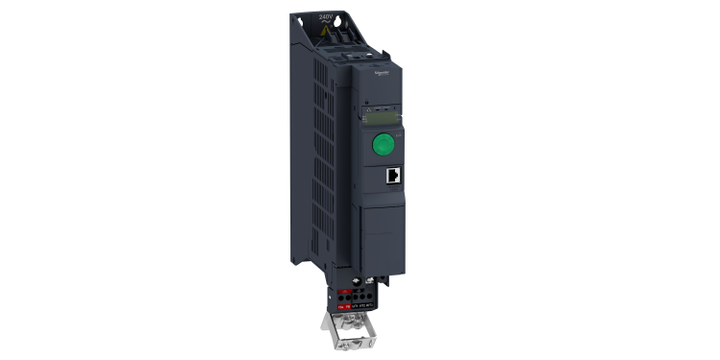

Schneider Electric ATV320U40N4B Variable Speed Drive, Altivar Machine ATV320, 4kW, 380 to 500V, 3 Phases, Book

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

USD - US$

Schneider Electric ATV320U40N4B Variable Speed Drive, Altivar Machine ATV320, 4kW, 380 to 500V, 3 Phases, Book

View Brand

Schneider Electric ATV320U40N4B Variable Speed Drive, Altivar Machine ATV320, 4kW, 380 to 500V, 3 Phases, Book

Brand:	SCHNEIDER ELECTRIC
Model:	ATV320U40N4B

Technical Data Sheets

Environmental disclosure

Specifications

View other Inverter Drives dimensions or variations

Range of Product

Altivar Machine ATV320

Mounting Mode

Cabinet mount

Standard

IEC 61800-5-1

IP Degree of Protection

IP20

Ambient Air Temperature for Operation

-10…50 °C without derating 50…60 °C with derating factor

Ambient Air Temperature for Storage

-25…70 °C

[Us] Rated Supply Voltage

380...500 V - 15...10 %

Switching Frequency

2...16 kHz adjustable 4...16 kHz with derating factor

Power Dissipation in W

Fan: 111 W at 380 V, switching frequency 4 kHz

Line Current

13.7 A at 380 V (heavy duty) 10.5 A at 500 V (heavy duty)

Apparent Power

9.1 kVA at 500 V (heavy duty)

Maximum Input Current

13.7 A

Maximum Output Voltage

500 V

Nominal Output Current

9.5 A

Width

60 mm

Product or Component Type

Variable speed drive

Depth

245.0 mm

Height

325.0 mm

Network Frequency

50...60 Hz

Overvoltage Category

III

Pollution Degree

Marking

CE ATEX UL CSA EAC RCM

Analog Input Type

AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits

Electromagnetic Compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Motor Power kW

4.0 kW for heavy duty

Minimum Switching Current

Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC

Certifications

CE ATEX NOM GOST EAC RCM KC

Operating Position

Vertical +/- 10 degree

Product Specific Application

Complex machines

Protection Type

Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive

Discrete Input Number

Analogue Input Number

Maximum Switching Current

Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC

Discrete Input Logic

Positive logic (source) Negative logic (sink)

Discrete Output Number

Regulation Loop

Adjustable PID regulator

Maximum Output Frequency

0.599 kHz

Analogue Output Number

Analogue Output Type

Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits

EMC Filter

Class C2 EMC filter integrated

Method of Access

Slave CANopen

Communication Port Protocol

Modbus serial CANopen

Variant

Standard version

Asynchronous Motor Control Profile

Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points

Synchronous Motor Control Profile

Vector control without sensor

Nominal Switching Frequency

4 kHz

Prospective Line Isc

5 kA

Discrete Input Type

STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)

Discrete Output Type

Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA

Relay Output Type

Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C

4 Quadrant Operation Possible

True

Acceleration and Deceleration Ramps

Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection

Motor Slip Compensation

Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points)

Braking to Standstill

By DC injection

Brake Chopper Integrated

True

Relative Symmetric Network Frequency Tolerance

5 %

Base Load Current at High Overload

9.5 A

With Safety Function Safely Limited Speed (SLS)

True

With Safety Function Safe Brake Management (SBC/SBT)

False

With Safety Function Safe Operating Stop (SOS)

False

With Safety function Safe Position (SP)

False

With Safety Function Safe Programmable Logic

False

With Safety Function Safe Speed Monitor (SSM)

False

With Safety Function Safe Stop 1 (SS1)

True

With sft fct Safe Stop 2 (SS2)

False

With Safety Function Safe Torque Off (STO)

True

With Safety Function Safely Limited Position (SLP)

False

With Safety Function Safe Direction (SDI)

False

Environmental Class (During Operation)

Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3

Maximum Acceleration Under Shock Impact (During Operation)

150 m/s² at 11 ms

Maximum Acceleration Under Vibrational Stress (During Operation)

10 m/s² at 13...200 Hz

Maximum Deflection Under Vibratory Load (During Operation)

1.5 mm at 2...13 Hz

Permitted Relative Humidity (During Operation)

Class 3K5 according to EN 60721-3

Volume of Cooling Air

11.3 m3/h

Ambient Air Transport Temperature

-25…70 °C

Option Card

Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet

Format of the Drive

Book

Transient Overtorque

170…200 % of nominal motor torque

Speed Accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Product Description

US $ 1,223.06

Quantity:
