Schneider Electric ABL2REM24015K Single Phase Power Supply, 100...240V Input, 24V Dc Output, 36W, 1,5A

View Brand

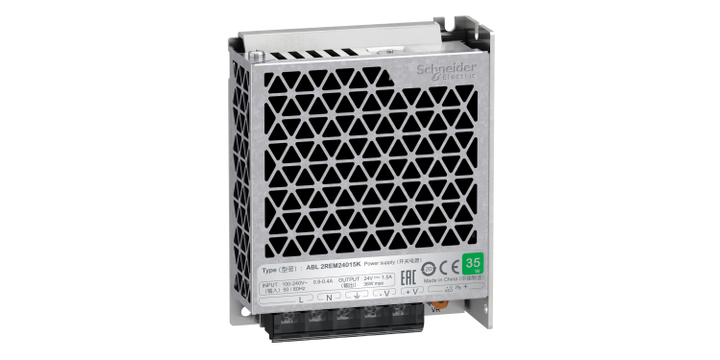

Schneider Electric ABL2REM24015K Single Phase Power Supply, 100...240V Input, 24V Dc Output, 36W, 1,5A

Brand:	SCHNEIDER ELECTRIC
Model:	ABL2REM24015K

Technical Data Sheets

Product Datasheet

Catalogue

Specifications

View other Power Supply dimensions or variations

Connections - Terminals

For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12

Product Certifications

EAC IC RoHS KC RCM

Inrush Current

45 A at 100...240 V AC

Status Led

1 LED (green) output voltage

Power Supply Output Current

1.5 A

Product Or Component Type

Power supply

Range Of Product

Easy Modicon ABL2

Mounting Support

DIN rail with accessory Panel mounting with accessory

Efficiency

87 %

Network Frequency

47...63 Hz

Overvoltage Category

Class I conforming to IEC 62368-1

Ip Degree Of Protection

IP20 conforming to IEC 62368-1

Pollution Degree

Relative Humidity

10…95 %

Ambient Air Temperature For Operation

-30…70 °C (with power derating of 2.5 % per °C)

Ambient Air Temperature For Storage

-40…85 °C

Operating Altitude

5000 m

Marking

Electromagnetic Compatibility

Immunity to electromagnetic interference conforming to EN 55022 class B

Operating Position

Any position

Vibration Resistance

4 gn (f= 10…500 Hz) conforming to IEC 61131-2

Dielectric Strength

2000 V between input and ground

Output Voltage

24 V DC

Output Voltage Limits

20.4...27.6 V

Current Consumption

0.4 A at 240 V

Power Supply Type

Regulated switch mode

Rated Power In W

36 W

Input Voltage Limits

85...264 V

Input Protection Type

Integrated fuse (not interchangeable)

Power Dissipation In W

5.4 W

Holding Time

>= 12 ms at 115 V

Meantime Between Failure [Mtbf]

600000 h at 25 °C

Output Protection Type

Against overload, protection technology: 1.1...1.5 x In Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 28.8...33.6 V

Line And Load Regulation

+/- 1 %

Output Coupling

Series

Main Input Voltage

100...240 V AC single phase

Name Of Test

Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A

Cos Phi

0.45

Product Description

US $ 31.72
