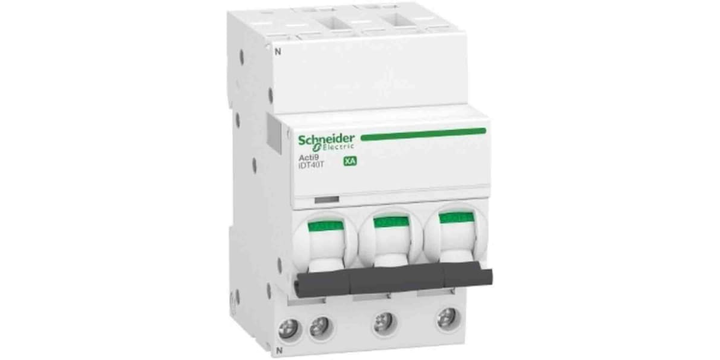

Schneider Electric A9PA2716 Acti 9 Mcb, 3P, 16A Curve C, 230V Ac, 7.5 Ka Breaking Capacity
Schneider Electric A9PA2716 Acti 9 Mcb, 3P, 16A Curve C, 230V Ac, 7.5 Ka Breaking Capacity
Specifications
infotip-icon
View other Miniature Circuit Breakers - MCBs dimensions or variations
Please select at least one specification below.
Range
Acti 9
Poles Description
3P
[In] Rated Current
16 A
Breaking Capacity
7.5 kA
Width
18 mm
This spec is not available in the specification table.
Depth
74 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Length
85 mm
This spec is not available in the specification table.
Tripping Characteristics
Type C
This spec is not available in the specification table.
Circuit Breaker Type
Residential MCB
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Reset Actuator Type
Toggle Switch
This spec is not available in the specification table.
Rated AC Voltage
230 V
This spec is not available in the specification table.
Product Description
