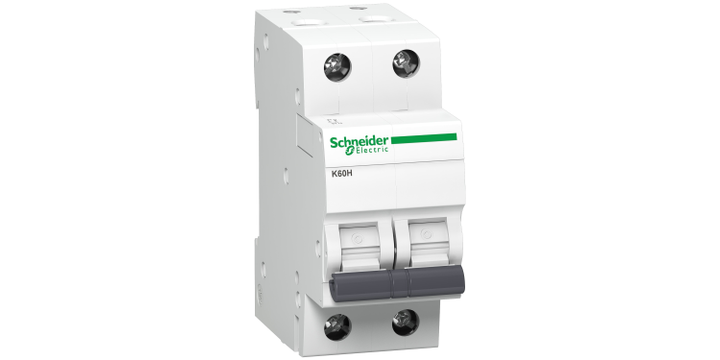

Schneider Electric A9K11232 Miniature Circuit Breaker (mcb), Acti9 K60H, 2P, 32A, B Curve, 10000A (IEC/EN 60898-1)
Schneider Electric A9K11232 Miniature Circuit Breaker (mcb), Acti9 K60H, 2P, 32A, B Curve, 10000A (IEC/EN 60898-1)
Brand: | SCHNEIDER ELECTRIC |
Model: | A9K11232 |
Specifications
Please select at least one specification below.
Range
Acti 9
Poles Description
2P
Network Type
AC
Number of Protected Poles
2
[In] Rated Current
32 A
Curve Code
B
Breaking Capacity
10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Standards
EN/IEC 60898-1
Magnetic Tripping Limit
3...5 x In
Connection - Terminals
Tunnel type terminals (downstream) 0.5…35 mm² rigid
IP Degree of Protection
IP20 conforming to IEC 60529
Ambient Air Temperature for Operation
-25…70 °C
Mechanical Durability
20000 cycles
Ambient Air Temperature for Storage
-25…85 °C
Electrical Durability
10000 cycles
Tightening Torque
3.5 N.m top or bottom
Colour
White
This spec is not available in the specification table.
Width
36 mm
This spec is not available in the specification table.
Trip Unit Technology
Thermal-magnetic
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Device Short Name
K60H
This spec is not available in the specification table.
Product Name
Acti9 K60
This spec is not available in the specification table.
Depth
70 mm
This spec is not available in the specification table.
Device Application
Distribution
This spec is not available in the specification table.
Mounting Mode
Fixed
This spec is not available in the specification table.
Network Frequency
50/60 Hz
This spec is not available in the specification table.
Utilisation Category
Category A conforming to IEC 60947-2
This spec is not available in the specification table.
Suitability for Isolation
Yes conforming to EN/IEC 60898-1
This spec is not available in the specification table.
[Ics] Rated Service Breaking Capacity
10000 A 75 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz
This spec is not available in the specification table.
Limitation Class
3 conforming to EN/IEC 60898-1
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
440 V AC 50/60 Hz conforming to EN/IEC 60898-1
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV conforming to EN/IEC 60898-1
This spec is not available in the specification table.
Contact Position Indicator
No
This spec is not available in the specification table.
Mounting Support
DIN rail
This spec is not available in the specification table.
Local Signalling
Without
This spec is not available in the specification table.
Overvoltage Category
II
This spec is not available in the specification table.
Comb Busbar and Distribution Block Compatibility
Downside: biconnect
This spec is not available in the specification table.
9 mm Pitches
4
This spec is not available in the specification table.
Height
81 mm
This spec is not available in the specification table.
Pollution Degree
2 conforming to IEC 60898-1
This spec is not available in the specification table.
Relative Humidity
95 % at 55 °C
This spec is not available in the specification table.
Operating Altitude
0...2000 m
This spec is not available in the specification table.
Wire Stripping Length
14 mm for top or bottom connection
This spec is not available in the specification table.
Earth-Leakage Protection
Without
This spec is not available in the specification table.
Product certifications
VDE
This spec is not available in the specification table.
Tropicalisation
2 conforming to IEC 60068-1
This spec is not available in the specification table.
Product Description
US $ 16.67
Quantity:
EA
