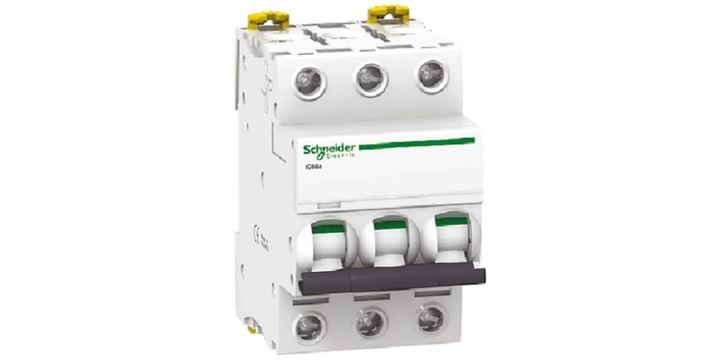

Schneider Electric A9F87310 Acti 9 iC60H Mcb, 3P, 10A Curve C, 440V Ac, 180V Dc, 10 Ka Breaking Capacity

View Brand

Schneider Electric A9F87310 Acti 9 iC60H Mcb, 3P, 10A Curve C, 440V Ac, 180V Dc, 10 Ka Breaking Capacity

Brand:	SCHNEIDER ELECTRIC
Model:	A9F87310

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Acti 9

Poles Description

[In] Rated Current

10 A

Breaking Capacity

10 kA

Depth

85 mm

Mounting Support

DIN Rail Mount

Series Name

iC60H

Tripping Characteristics

Type C

Circuit Breaker Type

MCB

Better World Product

Yes

Better World Verification

Green Premium

Rated AC Voltage

440 V

Rated DC Voltage

180 V

Product Description

US $ 284.87

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Miniature Circuit Breakers - MCBs

714 Items

Range

Square D, Resi 9, Acti 9, MASTERPACT NW, PowerPact

Poles Description

1P, 4P, 1P+N, 2P, 3P

[In] Rated Current

1.6 A, 3.5 A, 3.2 kA, 24 A, 1 A

Breaking Capacity

20 kA, 15 kA, 30 kA, 20 kA, 3 kA, 3000 A, 10 kA

Standards

EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2, EN 60947-2 IEC 60947-2 IEC 60898-1 EN 60898-1, EN 60947-2 IEC 60898-1 EN 60898-1 IEC 60947-2, EN 60947-2 EN 60898-1 IEC 60898-1 IEC 60947-2, EN/IEC 60898-1 EN/IEC 60947-2

Magnetic Tripping Limit

8 x In +/- 20 %, 3...5 x In, 4 x In +/- 20 %, 5...10 x In, 12 x In +/- 20 %

Connection - Terminals

Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminals (downstream) 0.5…35 mm² rigid, Tunnel type terminals (downstream) 0.5…25 mm² rigid Tunnel type terminals (upstream) 0.5…25 mm² rigid Tunnel type terminals (downstream) 0.5…16 mm² flexible Tunnel type terminals (upstream) 0.5…16 mm² flexible Tunnel type terminals (downstream) 0.5…16 mm² flexible with ferrule Tunnel type terminals (upstream) 0.5…16 mm² flexible with ferrule, Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminals1…50 mm² rigid Tunnel type terminals1.5…35 mm² flexible
