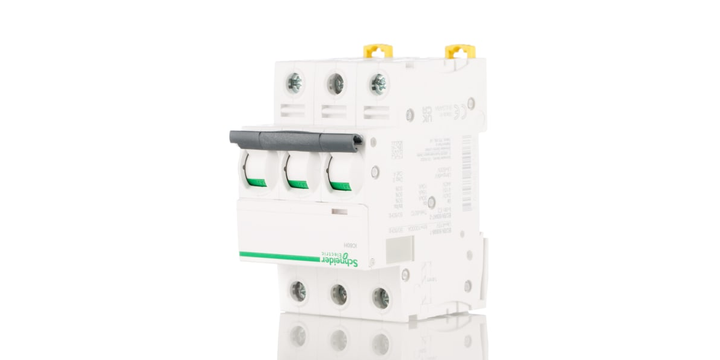

Schneider Electric A9F55332 Acti 9 iC60H Mcb, 3P, 32A Curve D, 440V Ac, 100 → 133V Dc, 10 Ka Breaking Capacity
Schneider Electric A9F55332 Acti 9 iC60H Mcb, 3P, 32A Curve D, 440V Ac, 100 → 133V Dc, 10 Ka Breaking Capacity
Brand: | SCHNEIDER ELECTRIC |
Model: | A9F55332 |
Specifications
Please select at least one specification below.
Range
Acti 9
Poles Description
3P
[In] Rated Current
32 A
Breaking Capacity
10 kA
Width
54 mm
This spec is not available in the specification table.
Depth
78.5 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Series Name
iC60H
This spec is not available in the specification table.
Length
85 mm
This spec is not available in the specification table.
Tripping Characteristics
Type D
This spec is not available in the specification table.
Circuit Breaker Type
MCB
This spec is not available in the specification table.
Special Features
Short Circuit Protection
This spec is not available in the specification table.
Terminal Contact Type
Screw
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Reset Actuator Type
Rocker Switch
This spec is not available in the specification table.
Rated AC Voltage
440 V, 12 → 133 V, 220 → 240 V, 380 → 415 V
This spec is not available in the specification table.
Rated DC Voltage
100 → 133 V
This spec is not available in the specification table.
Product Description
US $ 142.90
