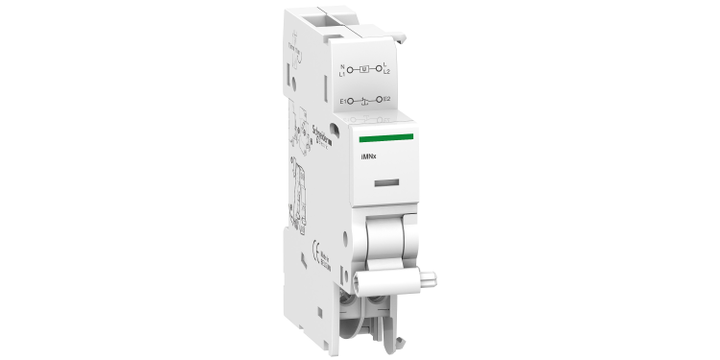

Schneider Electric A9A26969 Undervoltage Release, Acti9, Imnx, Voltage Release, 220...240 V Ac
Schneider Electric A9A26969 Undervoltage Release, Acti9, Imnx, Voltage Release, 220...240 V Ac
Brand: | SCHNEIDER ELECTRIC |
Model: | A9A26969 |
Specifications
Please select at least one specification below.
Device Short Name
iMNx
Product Or Component Type
Undervoltage release
Range Of Product
Acti9
[Uc] Control Circuit Voltage
220...240 V AC 50/60 Hz
Range Compatibility
Acti 9 Acti9 iC65
Acti 9 Acti9 ARA
Acti 9 Acti9 iDPN Vigi
Acti 9 Acti9 iID
Acti 9 Acti9 iSW-NA
Acti 9 Acti9 RCA
Acti 9 Acti9 iDPN (China version)
Acti 9 Acti9 iC60 double terminals miniature circuit breaker
Acti 9 Acti9 iC40
Control Type
With external feeding
This spec is not available in the specification table.
Colour
White
This spec is not available in the specification table.
Compatibility Code
IMNx
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Standards
EN/IEC 60947-5-1
This spec is not available in the specification table.
Mounting Support
DIN rail
This spec is not available in the specification table.
Local Signalling
Action indicator
This spec is not available in the specification table.
Connections - Terminals
Clamp terminal - 1 cable(s) 11 mm² - rigid
Clamp terminal - 2 cable(s) 2.1 mm² - rigid
Clamp terminal - 1 cable(s) 9 mm² - flexible
Clamp terminal - 2 cable(s) 2.1 mm² - flexible with cable end
This spec is not available in the specification table.
Comb Busbar And Distribution Block Compatibility
Top: YES
This spec is not available in the specification table.
9 Mm Pitches
2
This spec is not available in the specification table.
Relative Humidity
95 % at 55 °C
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-35…70 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…85 °C
This spec is not available in the specification table.
Tightening Torque
1 N.m
This spec is not available in the specification table.
Tropicalisation
2 conforming to EN/IEC 60947-5-1
This spec is not available in the specification table.
Product Description
US $ 226.10
