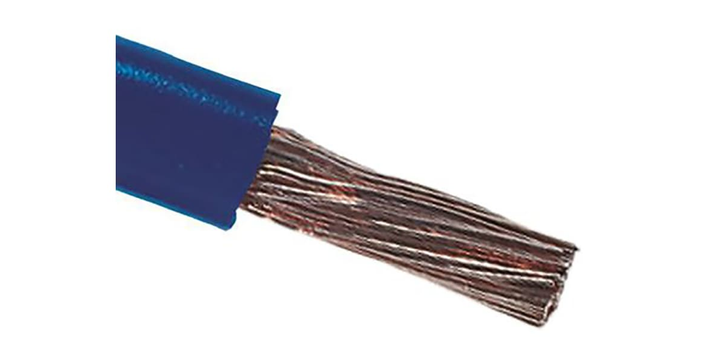

Rs Pro 9062717 Dark Blue 6 Mm² Hook up Wire, 10 Awg, 84/0.3 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 9062717 Dark Blue 6 Mm² Hook up Wire, 10 Awg, 84/0.3 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	9062717

Technical Data Sheets

Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Current Rating

53 A

Voltage Rating

1 kV

Specification Met

CSA C22.2 Type TEW, UK BS6231, UL 1015

Sheath Colour

Dark Blue

Insulation Material

PVC

American Wire Gauge

10 AWG

Maximum Operating Temperature

+105°C

Outer Diameter

5.1 mm

Number of Strands

Size of Strands

0.3 mm

Conductor Material

Annealed Copper

Core Strands

84/0.3 mm

Cable Shape

Wire

Insulation Wall Thickness

0.8 mm

Product Description

US $ 294.28
