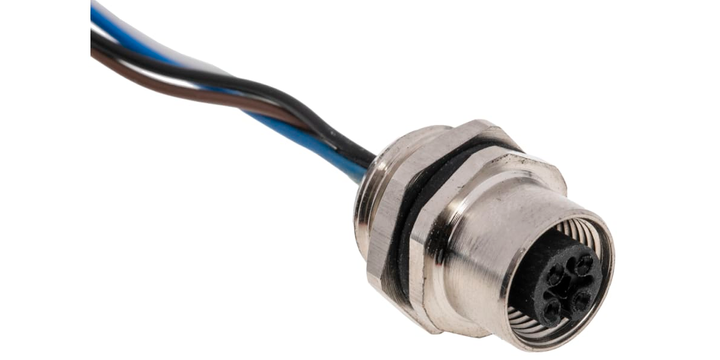

Rs Pro 8771110 Circular Connector, 4 Contacts, Panel Mount, M12 Connector, Socket, Female, IP67
Rs Pro 8771110 Circular Connector, 4 Contacts, Panel Mount, M12 Connector, Socket, Female, IP67
Brand:
RS Pro
Model:
8771110
Technical Data Sheets
Specifications
infotip-icon
View other Circular Connectors dimensions or variations
Please select at least one specification below.
Mating Type
Threaded
This spec is not available in the specification table.
Connector Size
M12
This spec is not available in the specification table.
Plug/Socket
Socket
This spec is not available in the specification table.
Voltage Rating
250 V
This spec is not available in the specification table.
Current Rating
4 A
This spec is not available in the specification table.
Mounting Type
Panel Mount
This spec is not available in the specification table.
Pole Format
4P
This spec is not available in the specification table.
Contact Gender
Female
This spec is not available in the specification table.
Termination Method
Pre-Wired
This spec is not available in the specification table.
Body Orientation
Straight
This spec is not available in the specification table.
Contact Material
Copper
This spec is not available in the specification table.
Contact Plating
Gold
This spec is not available in the specification table.
IP Rating
IP67
This spec is not available in the specification table.
Product Description
