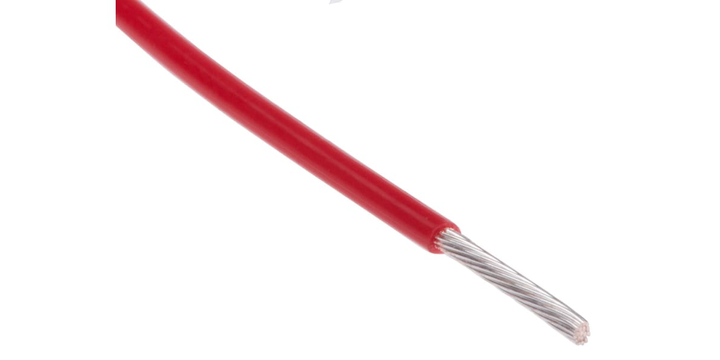

Rs Pro 8417412 Red 0.34 Mm² Hook up Wire, 22 Awg, 19/0.15 Mm, 100m, Ptfe Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
8 A
Voltage Rating
600 V
Specification Met
BS 3G 210:1996
Sheath Colour
Red
Insulation Material
PTFE
American Wire Gauge
22 AWG
Minimum Operating Temperature
-75°C
Maximum Operating Temperature
+200°C
Outer Diameter
1.35 mm
Number of Strands
19
Size of Strands
0.15 mm
Conductor Material
Silver Plated Copper
Core Strands
19/0.15 mm
Wire Style
BS3G210
Insulation Wall Thickness
0.25 mm
Product Description
US $ 175.01
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 175.01 |
Quantity:
EA
