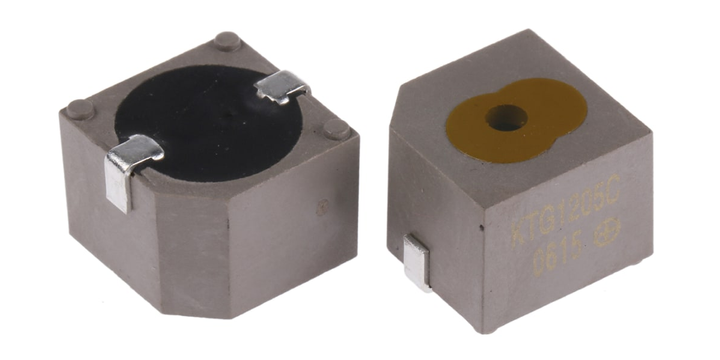

Rs Pro 7542084P 94dB Smd Continuous Internal Magnetic Buzzer Component, 12.8 X 12.8 X 10mm, 4V Min, 7V Max
Rs Pro 7542084P 94dB Smd Continuous Internal Magnetic Buzzer Component, 12.8 X 12.8 X 10mm, 4V Min, 7V Max
Brand:
RS Pro
Model:
7542084P
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Surface Mount
Height
10 mm
Dimensions
12.8 x 12.8 x 10 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+70°C
Minimum Supply Voltage
4V
Maximum Supply Voltage
7V
Sound Level
94 dB
Tone Type
Continuous
Maximum Frequency
2.7 kHz
Supply Current
30 mA
Minimum Frequency
2100 Hz
