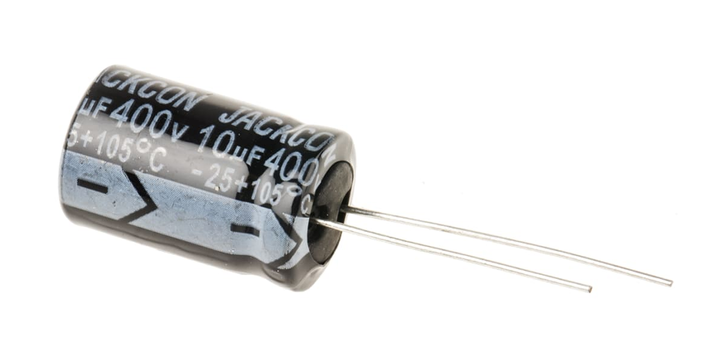

Rs Pro 7112040 10 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Radial, Through Hole

View Brand

Rs Pro 7112040 10 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7112040

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

400 VDC

Mounting Type

Radial, Through Hole

Dimensions

13 (Dia.) x 21 mm

Capacitance

10 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

115 mA

Leakage Current

<=0.03 CV or 3 µA @ 1 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

US $ 7.77

Units	Discount	Unit Price
1	-	US $ 0.78

Quantity:

MOQ of 10 EA

Bundle of 10 EA

Lead time of 90 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Aluminium Capacitors

834 Items

Voltage

63 VDC, 10 VDC, 350 VDC, 160 VDC, 6.3 VDC

Dimensions

4 (Dia.) x 5 mm, 13 (Dia.) x 22 mm, 22 (Dia.) x 50 mm, 6 (Dia.) x 7 mm, 16 (Dia.) x 36 mm

Capacitance

3300 µF, 3.3 µF, 100 nF, 10 µF, 1500 µF

Lead Pitch

7.5 mm, 3.5 mm, 12 mm, 2.5 mm, 2 mm

Lifetime

2000 hours @ 105°C, 1000 hours @ 105°C, 1000 h, 1000h, 2000h

Ripple Current

1.55 A, 2.5 A, 77 mA, 12 mA, 38 mA

Leakage Current

<=0.02 CV or 3 µA @ 5 min, <=0.03 CV or 3 µA @ 1 min, I <0.01 CV or 3 µA @ 2 min, I <0.02 CV or 3 µA @ 5 min, I <0.01 CV or 3 µA @ 1 min
