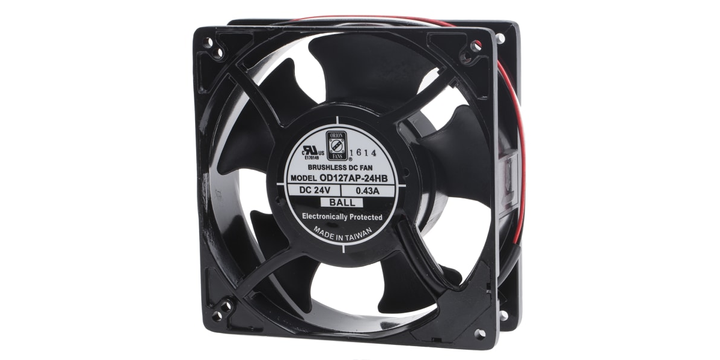

Rs Pro 6196630 Axial Fan, 24 V Dc, Dc Operation, 237.9m³/h, 10.6W, 430mA Max, 127 X 127 X 38mm
Rs Pro 6196630 Axial Fan, 24 V Dc, Dc Operation, 237.9m³/h, 10.6W, 430mA Max, 127 X 127 X 38mm
Brand:
RS Pro
Model:
6196630
Technical Data Sheets
Specifications
infotip-icon
View other Axial Fans dimensions or variations
Please select at least one specification below.
Width
127 mm
Depth
38 mm
Height
127 mm
Dimensions
127 x 127 x 38 mm
Sensor Type
Open Collector
Supply Voltage
24 V dc
AC or DC Operation
DC
Power Consumption
10.6 W
Maximum Current
430 mA
Termination Type
Wire
Air Flow
237.9 m³/h
Noise Level
46 dB
Fan Speed
3000 rpm
Direction of Curve
Backward
Bearing Type
Ball
Product Description
