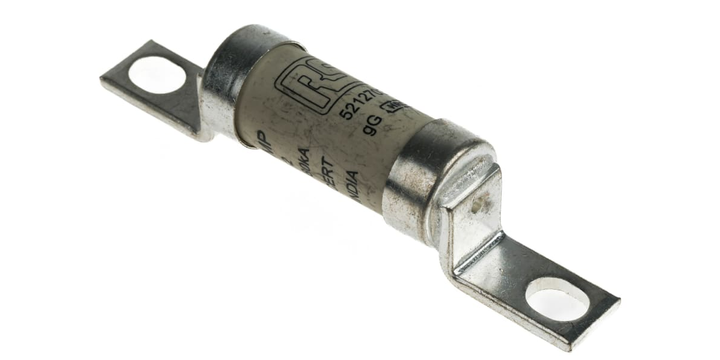

Rs Pro 5212703 100A British Standard Fuse, A4, 550V Ac, 94mm
Rs Pro 5212703 100A British Standard Fuse, A4, 550V Ac, 94mm
Brand:
RS Pro
Model:
5212703
Technical Data Sheets
Specifications
infotip-icon
View other Tag Fuses dimensions or variations
Please select at least one specification below.
Series
CEO
Current Rating
100 A
Voltage Rating
550 V ac
Overall Length
110 mm
Body Length
58 mm
Fuse Size
A4
Fixing Centres
94 mm
Fuse Standard
BS 88, IEC 269
Body Diameter
21 mm
Tag Width
14.3 mm
Tag Type
Bolted
Body Height
21 mm
Application Category
gG
This spec is not available in the specification table.
Tag Orientation
Offset
This spec is not available in the specification table.
