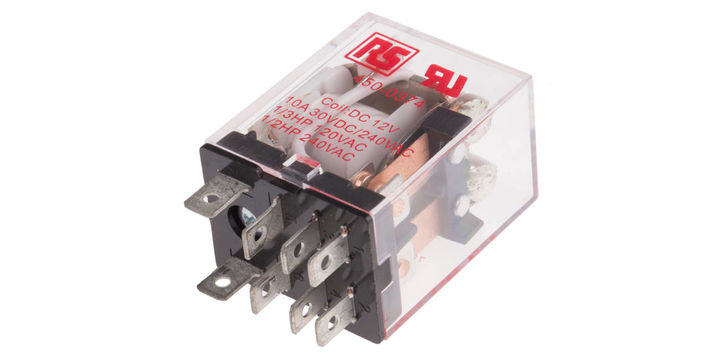

Rs Pro 4500374 Plug in Power Relay, 12V Dc Coil, 10A Switching Current, Dpdt
Rs Pro 4500374 Plug in Power Relay, 12V Dc Coil, 10A Switching Current, Dpdt
Brand:
RS Pro
Model:
4500374
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
28 mm
Application
Power
Mounting Type
Plug In
Depth
21.5 mm
Height
36 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
12 V dc
Standards Met
CUR E125370, UL E125370
Minimum Operating Temperature
-45°C
Maximum Operating Temperature
+70°C
Terminal Type
PCB Pin
Maximum Switching Voltage AC
240 V ac
Maximum Switching Voltage DC
30 V dc
Coil Power
900 mW
Coil Resistance
160 Ohm
Isolation Coil To Contact
1.5 kV ac
Maximum Switching Power DC
300 W
Switching Current
10 A
Maximum Switching Power AC
2.4 kVA
Number of Poles
2
This spec is not available in the specification table.
Life
1000000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
