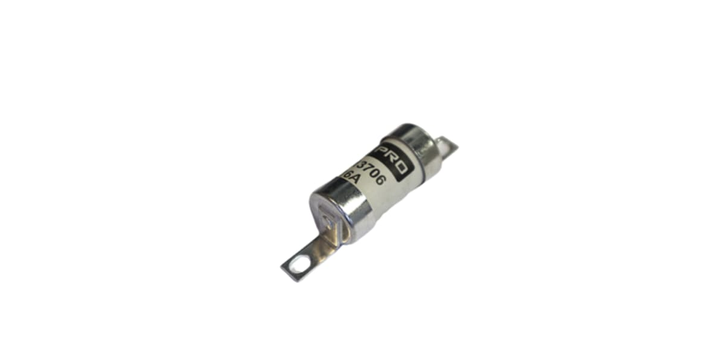

Rs Pro 2213707 16A Bolted Tag Fuse, A2, 250 V Dc, 690 V Ac, 73mm (1 Bag of 5)
Rs Pro 2213707 16A Bolted Tag Fuse, A2, 250 V Dc, 690 V Ac, 73mm (1 Bag of 5)
Brand:
RS Pro
Model:
2213707
Technical Data Sheets
Specifications
infotip-icon
View other Tag Fuses dimensions or variations
Please select at least one specification below.
Series
SSA
Current Rating
16 A
Voltage Rating
250 V dc, 690 V ac
Overall Length
86 mm
Body Length
49 mm
Fuse Size
A2
Fixing Centres
73 mm
Fuse Standard
IEC 60269-2/BS 88-2
Body Diameter
22 mm
Tag Width
9 mm
Tag Type
Bolted
Application Category
gG, gM
This spec is not available in the specification table.
Tag Orientation
Offset
This spec is not available in the specification table.
