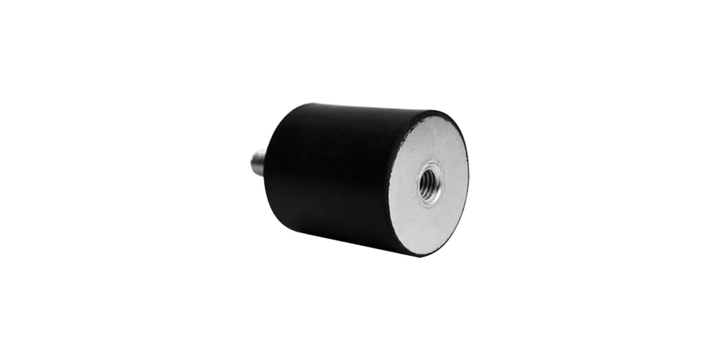

Rs Pro 1961351 M6X20 Anti Vibration Mount, Male to Female Bobbin With 42.3kg Compression Load
Rs Pro 1961351 M6X20 Anti Vibration Mount, Male to Female Bobbin With 42.3kg Compression Load
Brand:
RS Pro
Model:
1961351
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M6
Length
20 mm
Diameter
25 mm
Overall Height
20 mm
Material
Rubber
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
42.3 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
14.4 kg
