Rs Pro 1919483 External Nylon Float Switch, Float, 1m Cable, NO/NC, 240V Ac Max, 120V Dc Max

View Brand

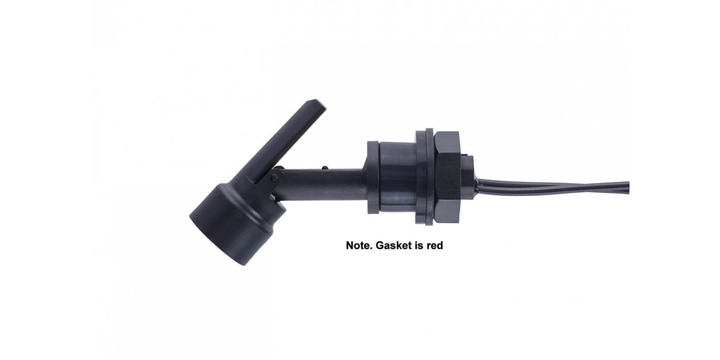

Rs Pro 1919483 External Nylon Float Switch, Float, 1m Cable, NO/NC, 240V Ac Max, 120V Dc Max

Brand:	RS Pro
Model:	1919483

Technical Data Sheets

RS PRO Datasheet

Specifications

View other Float Switch dimensions or variations

Mounting Type

External

Body Material

Nylon

Maximum Current

600 mA

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+75°C

Maximum AC Voltage

240 V

Maximum DC Voltage

120 V

Cable Length

1 m

Switch Output

NO/NC

Gasket Material

Silicone

Product Description

US $ 21.71

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Float Switch

86 Items

Mounting Type

Threaded, External, Horizontal, Internal, Horizontal Internal, Side Mounted

Body Material

PA66+GF20, Stainless Steel, 304 Stainless Steel (Stem), 316 Stainless Steel (Float), High Density Polyethylene, PP

Maximum Current

0.5 A, 3 (Inductive Load) A, 4 (Resistive Load) A, 1.0 A, 10 A, DC 0.7 A/AC 0.5 A

Maximum Operating Temperature

+130°C, +110°C, +135°C, +55°C, +75°C

Maximum AC Voltage

130 V, 240 V, 250 V, 300 V, 220 V

Maximum DC Voltage

24 V, 30 V, 120 V, 350 V, 110 V

Cable Length

1 m, 350 mm, 100 cm, 5 m, 500 mm
