Rs Pro 1701261 3300 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

View Brand

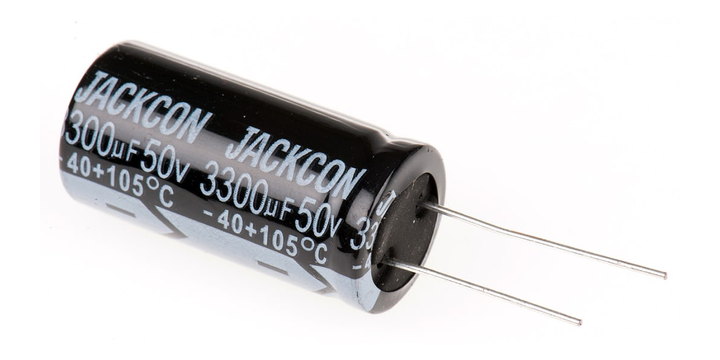

Rs Pro 1701261 3300 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701261

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Lifetime

2000h

Ripple Current

1.78 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Voltage

50 VDC

Mounting Type

Radial, Through Hole

Dimensions

18 (Dia.) x 36 mm

Capacitance

3300 µF

Lead Pitch

7.5 mm

Product Description

US $ 133.53

Quantity:

MOQ of 100 EA

Bundle of 100 EA

This item is sold by

SG-4570630354
