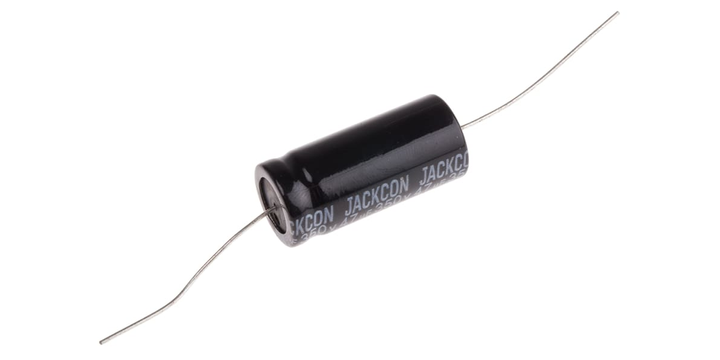

Rs Pro 1701108 47 Microfarad Aluminium Electrolytic Capacitor 350V Dc, Axial, Through Hole
Rs Pro 1701108 47 Microfarad Aluminium Electrolytic Capacitor 350V Dc, Axial, Through Hole
Brand:
RS Pro
Model:
1701108
Specifications
infotip-icon
View other Aluminium Capacitors dimensions or variations
Please select at least one specification below.
Voltage
350 VDC
Mounting Type
Axial, Through Hole
Dimensions
16 (Dia.) x 36 mm
Capacitance
47 µF
Lifetime
1000h
Ripple Current
238 mA
Leakage Current
<=0.03 CV or 4 µA @ 5 min
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+105°C
Dissipation Factor
20%
Tolerance
±20%
