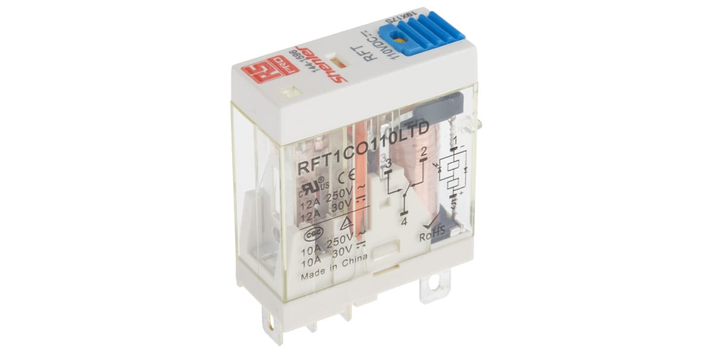

Rs Pro 1441596 Plug in Power Relay, 110V Dc Coil, 10A Switching Current, Spdt
Rs Pro 1441596 Plug in Power Relay, 110V Dc Coil, 10A Switching Current, Spdt
Brand:
RS Pro
Model:
1441596
Technical Data Sheets
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
29 mm
Application
Interface
Mounting Type
Plug In
Depth
12.6 mm
Height
28 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
110 V dc
Standards Met
CE:CQC, CULus
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+55°C
Terminal Type
PCB Pin
Maximum Switching Voltage AC
250 V
Maximum Switching Voltage DC
30 V dc
Coil Power
530 mW
Coil Resistance
22800 Ohm
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
0.53 W
Switching Current
10 A, 12 A
Maximum Switching Power AC
1 VA
Number of Poles
1
This spec is not available in the specification table.
Life
10000000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
