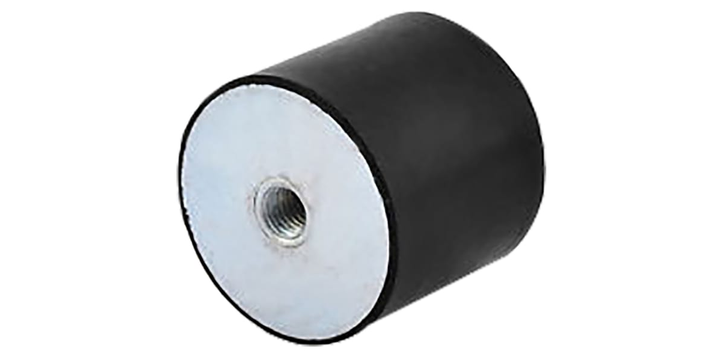

Rs Pro 1264908 M8 Anti Vibration Mount, Female Buffer Foot With 57.04kg Compression Load (1 Bag of 4)
Rs Pro 1264908 M8 Anti Vibration Mount, Female Buffer Foot With 57.04kg Compression Load (1 Bag of 4)
Brand:
RS Pro
Model:
1264908
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M8
Diameter
30 mm
Overall Height
30 mm
Series
AV Type C
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Female Buffer Foot
Compression Load
57.04 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
20.9 kg
Compression Deflection
3 mm
