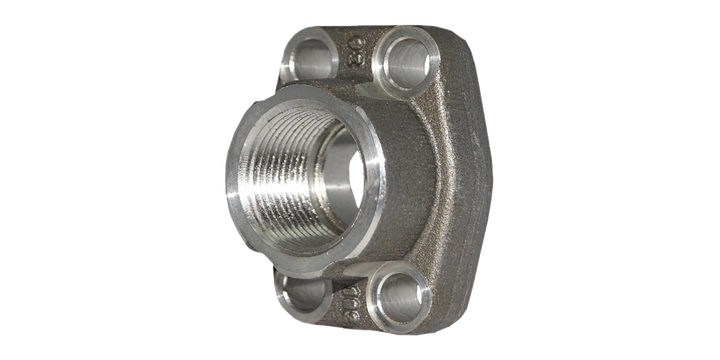

Oleo Tecnica Carbon Steel Sae Threaded 4-Bolt Flange1/2" Npt O-Ring Side SAE-H-IT-N-6-O-04
Oleo Tecnica Carbon Steel Sae Threaded 4-Bolt Flange1/2" Npt O-Ring Side SAE-H-IT-N-6-O-04
Technical Data Sheets
Specifications
infotip-icon
View other Flanges dimensions or variations
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
NPT
Flange Size
1/2"
Configuration
O-Ring Side
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Sold with
O-Ring
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M8
This spec is not available in the specification table.
Screw Length
30
mm
This spec is not available in the specification table.
Screw Torque (NM)
32
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description

Oleo Tecnica Carbon Steel Sae Threaded 4-Bolt Flange1/2" Npt O-Ring Side SAE-H-IT-N-6-O-04

  • Oleo Tecnica Carbon Steel ST52.3 SAE Threaded 4-Bolt Flange, Code 62 6000 PSI, 1/2” NPT O-Ring Side, 4-Bolt Flange w/NBR O-Ring, SAE J518 Standard
  • 1/2"NPT HYDR SAE FLANGE 6000
  • ORING SIDE
US $ 8.50
