Multicomp Pro VTX-146-050-155 Transformer, 50VA, 2 X 55V

View Brand

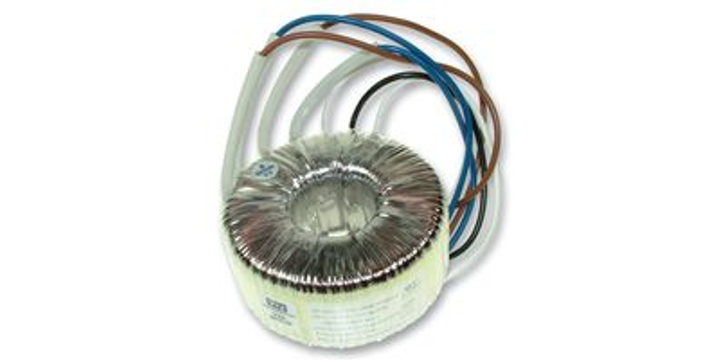

Multicomp Pro VTX-146-050-155 Transformer, 50VA, 2 X 55V

Brand:	MULTICOMP PRO
Model:	VTX-146-050-155

Technical Data Sheets

Technical Data Sheet (1.05MB) EN

Specifications

View other Toroidal Transformers dimensions or variations

Termination Type

Lead Wire

Secondary Voltage Rating

2 x 55 V

Primary Voltage Rating

230 V

Power Rating

50 VA

Height

34 mm

Current Rating

450 mA

Series Name

VTX Series

Output Voltage

55 V

Lead Length

150 mm

Transformer Mounting

Chassis

Secondary Current Nom

450 mA

Outer Diameter

81 mm

Toroid Centre

Open

Winding Type

Single Primary, Dual Secondary

Bolt Size Max

Product Description

US $ 35.57

Lead time of 5 working days required.

Item will be ready to dispatch within the lead time specified.

Quantity:

This item is sold by

SG-7425082168
