Multicomp Pro BC107A Transistor, Npn, TO-18
View Brand

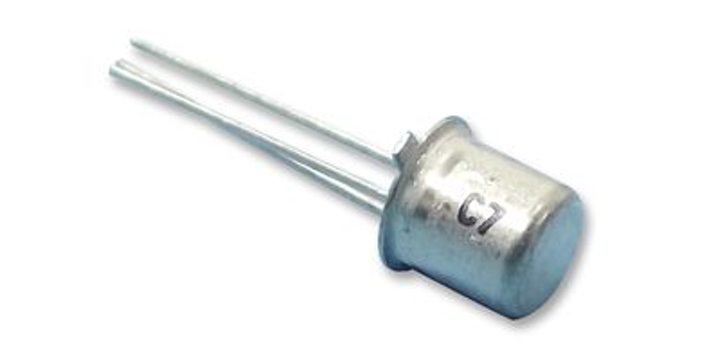

Multicomp Pro BC107A Transistor, Npn, TO-18
Brand:
MULTICOMP PRO
Model:
BC107A
Technical Data Sheets
Technical Data Sheet (259.49KB) EN
Specifications
View other
Single Bipolar Junction Transistors
dimensions or variations
Please select at least one specification below.
Find Selected Specs
Termination Type
Through Hole
Operating Temperature Min
-65°C
Operating Temperature Max
200°C
Transistor Case Style
TO-18
Collector Emitter Voltage Max
45 V
Power Dissipation
600 mW
DC Current Gain hFE
110 hFE
Transition Frequency
150 MHz
DC Collector Current
100mA
Collector Emitter Saturation Voltage Vce(on)
250 mV
Current Ic hFE
2 mA
Voltage Vcbo
50 V
Gain Bandwidth ft Min
150 MHz
Gain Bandwidth ft Typ
150 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
NPN
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
45 V
This spec is not available in the specification table.
Product Description
US $ 0.58
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
/ EA
Add to Cart
Add To Shopping List
This item is sold by
SG-7425082168
View Shop
