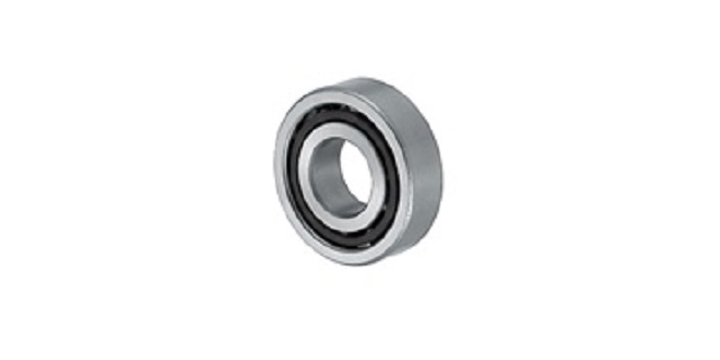

Misumi E-B7219SU Angular Contact Ball Bearings Single Row Universal Combination
Specifications
Please select at least one specification below.
Bearing Type
Angular Contact Ball (Single Row)
Bore Diameter
95 mm
Outside Diameter
170 mm
Width
32 mm
Bearing Material
SUJ2 Equiv.
Measurement System
Metric System
This spec is not available in the specification table.
Weight
2780 g
This spec is not available in the specification table.
Environment Specification
Standard
This spec is not available in the specification table.
Load Direction
Radial / Thrust Load, Axial
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
122000 N
This spec is not available in the specification table.
Allowable Rotational Speed [rpm]
4400 rpm
This spec is not available in the specification table.
Precision (JIS)
Class 4
This spec is not available in the specification table.
Outer Ring Type
Flat
This spec is not available in the specification table.
Number of Raceway Ring Rows
Single Row
This spec is not available in the specification table.
Rolling Element Material
[Steel] SUJ2 Equiv.
This spec is not available in the specification table.
Basic Load Rating Cor (Static) [N]
103000 N
This spec is not available in the specification table.
Product Description
US $ 105.27
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 105.27 |
Quantity:
EA
Lead time of 35 working days required.
Item will be ready to dispatch within the lead time specified.
