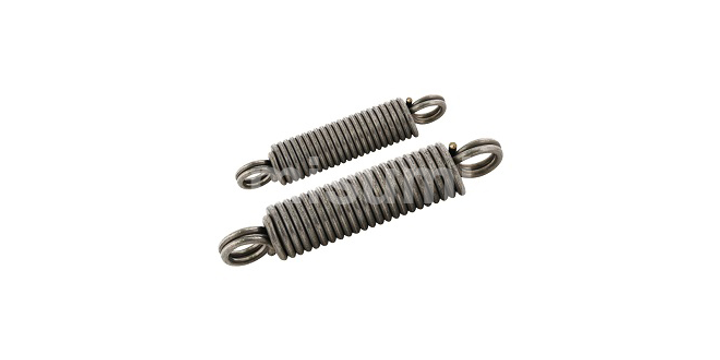

Misumi C-WAWT5-25 Tension Springs Heavy Load, Double Round Hook O.D.5-14
Misumi C-WAWT5-25 Tension Springs Heavy Load, Double Round Hook O.D.5-14
Brand:
MISUMI
Model:
C-WAWT5-25
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Outer Diameter
5
mm
Allowable Load (Configurable Range)
15.01~30.00 N
Max. Load
20.79 N
Wire Diameter
0.8
mm
Free Length
25
mm
Length of Spring Used L+F
31.4
mm
Initial Tension
5.1 N
Standard Spring Constant
2.45 N/mm
Max. Deflection
6.4 mm
Hook Opposing Angle
180° (2 Layers)
