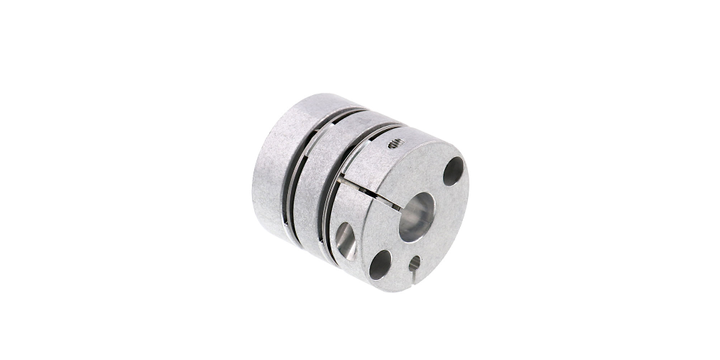

Misumi C-SCPW28-10-10 Disc Couplings High Regidity Double Disc, Clamping Type
Misumi C-SCPW28-10-10 Disc Couplings High Regidity Double Disc, Clamping Type
Specifications
infotip-icon
View other Shaft Couplings dimensions or variations
Please select at least one specification below.
Length
32.2 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
10 mm
Shaft Bore Diameter 2
10 mm
Outer Diameter
28 mm
Allowable Torque Range
1.01 - 3.00 Nm
Shaft Tightening Method
Fastening Bolt
Shaft Bore Shape
Standard Bore
Single/Double
Double
Allowable Lateral Misalignment [mm]
0
mm
This spec is not available in the specification table.
Allowable Lateral Misalignment Range [mm]
0.02 - 0.2
mm
This spec is not available in the specification table.
Allowable Angular Misalignment [deg]
1
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Disc
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Eccentricity / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
0
mm
This spec is not available in the specification table.
Product Description
