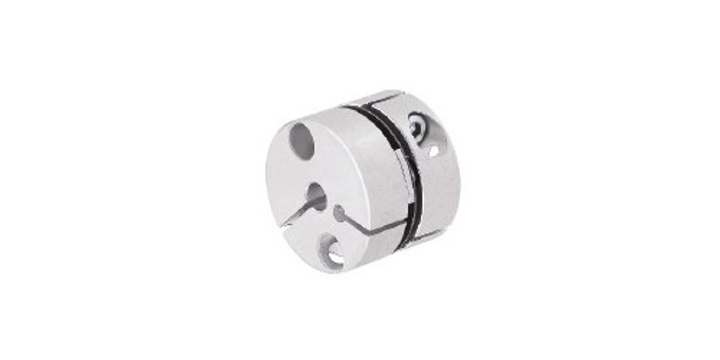

Misumi C-SCPS28-6-6 Disc Couplings High Regidity Single Disc, Clamping Type
Misumi C-SCPS28-6-6 Disc Couplings High Regidity Single Disc, Clamping Type
Brand:
MISUMI
Model:
C-SCPS28-6-6
Specifications
infotip-icon
View other Shaft Couplings dimensions or variations
Please select at least one specification below.
Length
21.5 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
6 mm
Shaft Bore Diameter 2
6 mm
Outer Diameter
28 mm
Allowable Torque Range
1.01 - 3.00 Nm
Shaft Tightening Method
Fastening Bolt
Shaft Bore Shape
Standard Bore
Single/Double
Single
Allowable Angular Misalignment [deg]
1
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Disc
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
0
mm
This spec is not available in the specification table.
