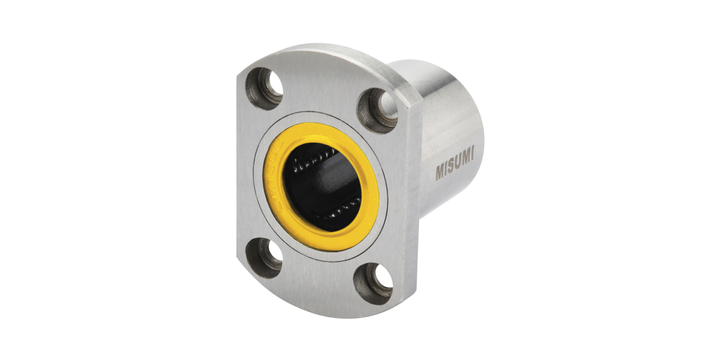

Misumi C-LMH20UU Compact Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Misumi C-LMH20UU Compact Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Brand:
MISUMI
Model:
C-LMH20UU
Specifications
infotip-icon
View other Linear Bearing dimensions or variations
Please select at least one specification below.
Type
Flange
Accuracy
Standard Grade
Ball Material
SUJ2 Equivalent
Outer Diameter
32
mm
Overall Length
42
mm
Inscribed Circle Diameter
20
mm
Ball Recirculating Type
Single
Eccentricity
30 µm
Flange Shape
Double-sided Cutting Flange
Basic Load Rating: Static Load
1370 N
Motion
Linear
Basic Load Rating: Dynamic Load
882 N
