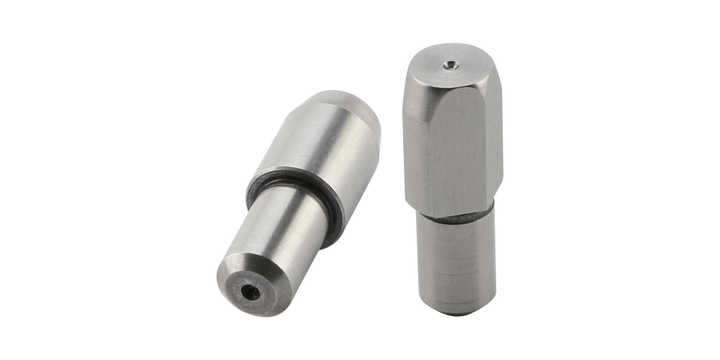

Misumi C-JPDB6-10 Tapered - Large Head Locating Pins
Brand: | MISUMI |
Model: | C-JPDB6-10 |
Specifications
Please select at least one specification below.
Type
Locating Pin
Steel Type
SUJ2 Equivalent
Insertion Guide Tip Shape
Diamond
Basic Shape
Large Head
Surface Treatment
Not Provided
This spec is not available in the specification table.
Locating Side Outer Dia.
10
mm
This spec is not available in the specification table.
Mounting Side Outer Dia.
6
mm
This spec is not available in the specification table.
Locating Side O.D. Tolerance
-0.01/-0.02
This spec is not available in the specification table.
Mounting Side Shape
Straight (Press-Fit)
This spec is not available in the specification table.
Heat Treatment
Directly Quenching
This spec is not available in the specification table.
Insertion Guide Tip Type
Tapered
This spec is not available in the specification table.
Mounting Side Tolerance
m6
This spec is not available in the specification table.
Dimension Configurable Type
P Fixed
This spec is not available in the specification table.
Product Description
Misumi C-JPDB6-10 Tapered - Large Head Locating Pins
- Basic Shape: Large Head
- Insertion Guide Tip Shape: Diamond
- Insertion Guide Tip Type: Tapered
- Insertion Guide Specifications: Not Provided
- Mounting Side Shape: Straight (Press-Fit)
- Surface Treatment: Not Provided
- Heat Treatment: Directly Quenching
- Steel Type: [SUJ2] SUJ2 Equivalent
- Locating Side Outer Dia. P (Ø)(mm): 10
- Locating Side O.D. Tolerance: -0.01/-0.02
- Mounting Side Outer Dia. D(Ø): 6
- Mounting Side Tolerance: m6
US $ 2.80
Quantity:
EA
Stock:
20 EA in stock
In Seller's Warehouse
