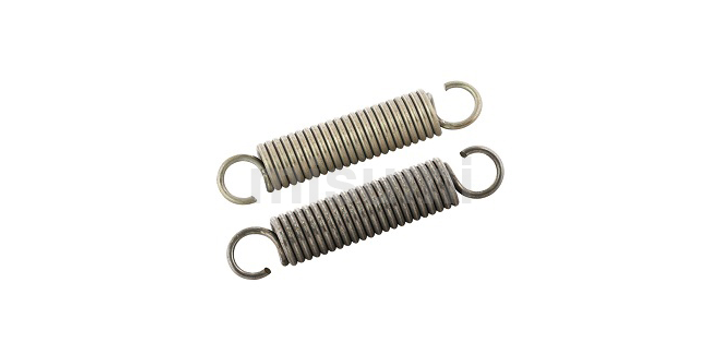

Misumi C-AWS5-15 Tension Springs Medium Light / Medium Load O.D.3-10
Misumi C-AWS5-15 Tension Springs Medium Light / Medium Load O.D.3-10
Brand:
MISUMI
Model:
C-AWS5-15
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SWP-A
Outer Diameter
5
mm
Allowable Load (Configurable Range)
8.01~15.00 N
Max. Load
8.53 N
Wire Diameter
0.6
mm
Free Length
15
mm
Length of Spring Used L+F
20.6
mm
Initial Tension
1.57 N
Standard Spring Constant
1.27 N/mm
Max. Deflection
5.6 mm
Hook Opposing Angle
180° (Standard)
