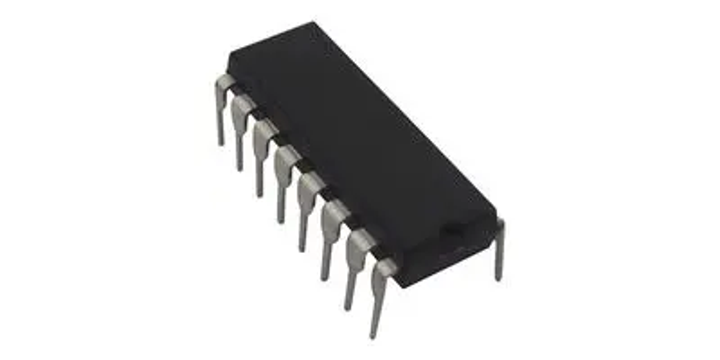

Analog Devices MAX313CPE+ Ic, Switch, Quad Spst, DIP16, 313
Analog Devices MAX313CPE+ Ic, Switch, Quad Spst, DIP16, 313
Brand: | Analog Devices |
Model: | MAX313CPE+ |
Technical Data Sheets
Specifications
Please select at least one specification below.
Analogue Switch Type
SPST
This spec is not available in the specification table.
On State Resistance Max
10 ohm
This spec is not available in the specification table.
No. of Pins
16
This spec is not available in the specification table.
Operating Temperature Max
70°C
This spec is not available in the specification table.
Operating Temperature Min
0°C
This spec is not available in the specification table.
SVHC
No SVHC (15-Jan-2018)
This spec is not available in the specification table.
Analogue Switch Case Style
DIP
This spec is not available in the specification table.
Base Number
313
This spec is not available in the specification table.
Logic Function Number
313
This spec is not available in the specification table.
IC Temperature Range
Commercial
This spec is not available in the specification table.
No. of Channels
4 Channels
This spec is not available in the specification table.
On Resistance Rds(on)
10 ohm
This spec is not available in the specification table.
Supply Voltage Max
20 V
This spec is not available in the specification table.
Turn Off Time
65 ns
This spec is not available in the specification table.
Operating Temperature Range
0°C to +70°C
This spec is not available in the specification table.
Supply Voltage Min
4.5 V
This spec is not available in the specification table.
Turn On Time
70 ns
This spec is not available in the specification table.
Supply Voltage Range
4.5 V to 30 V, ± 4.5 V to ± 20 V
This spec is not available in the specification table.
Supply Voltage Source
Dual
This spec is not available in the specification table.
Termination Type
Through Hole
This spec is not available in the specification table.
Product Description
US $ 24.43
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
