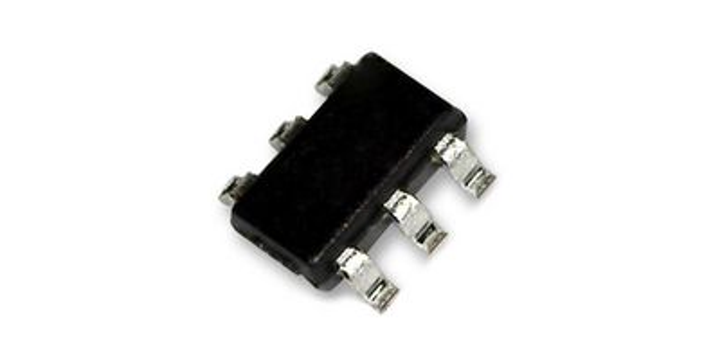

Analog Devices MAX1589AEZT100+T Voltage Resistor Ldo, Fixed, 1V, 0.5A, TSOT-23-6
Analog Devices MAX1589AEZT100+T Voltage Resistor Ldo, Fixed, 1V, 0.5A, TSOT-23-6
Brand: | Analog Devices |
Model: | MAX1589AEZT100+T |
Technical Data Sheets
Specifications
Please select at least one specification below.
Output Type
Fixed
This spec is not available in the specification table.
Input Voltage Min
1.62 V
This spec is not available in the specification table.
Input Voltage Max
3.6 V
This spec is not available in the specification table.
Fixed Output Voltage Nom
1 V
This spec is not available in the specification table.
Output Current
500 mA
This spec is not available in the specification table.
Dropout Voltage Vdo
175 mV
This spec is not available in the specification table.
LDO Regulator Case Style
TSOT-23
This spec is not available in the specification table.
No. of Pins
6
This spec is not available in the specification table.
Operating Temperature Min
-40°C
This spec is not available in the specification table.
Operating Temperature Max
85°C
This spec is not available in the specification table.
Product Range
750mV 500mA LDO Voltage Regulators
This spec is not available in the specification table.
Product Description
US $ 4.31
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
This item is sold by
SG-7425082168
